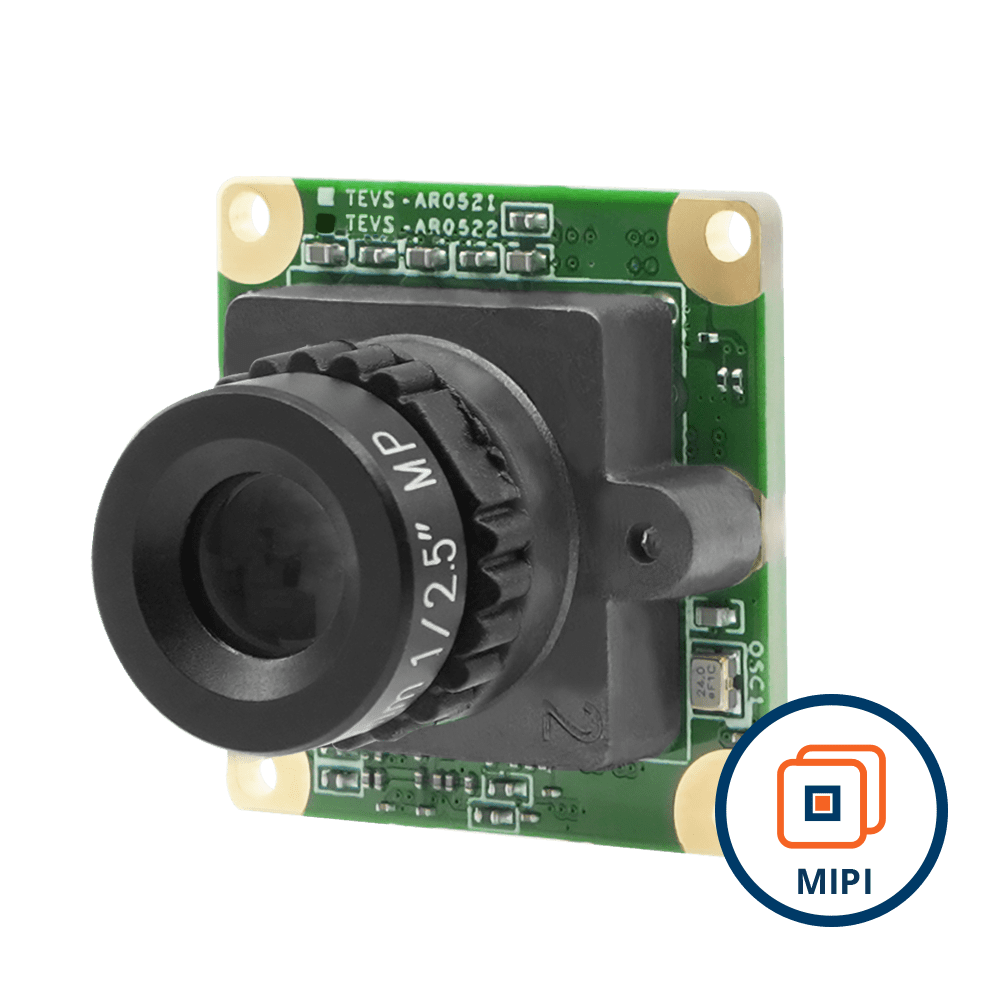

TEVS-AR0522-M-S34-IR
$84.00
MIPI-CSI2 Sensor onsemi AR0522 5MP Mono Rolling Shutter with ISP + 34 Degree M12 Lens with IR-Cut Filter
30 in stock (can be backordered)
Specifications
Additional information
CMOS Sensor | onsemi AR0522 |
---|---|
Active Pixels | 2592 (H) x 1944 (V) = 5MP |
Pixel Size | 2.2 µm x 2.2 µm |
Optical Format | 1/2.5" (Diagonal 7.13mm) |
Shutter Type | Rolling Shutter |
Chromaticity | Mono |
Illuminated type | Back Side Illuminated (BSI) |
Maximum Frame Rate (YUY2) | 2592 x 1944 @ 24 fps, 2560 x 1440 @ 32 fps, 1920 x 1080 @ 60 fps, 1280 x 960 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 120 fps |
Maximum S/N Ratio | 40 dB |
Input Clock Range | 48 MHz |
Output Format | YUV2 |
Module Data Transmission | MIPI CSI-2, up to 4 lanes |
Communication Interface | I2C |
Connector | 70 Pin Standardized Connector |
Supply Voltage | Analog: 2.8V, I/O: 1.8V, Digital: 1.15V & 3.3V |
Power Consumption | 2592 x 1944 @ 30 fps ≤ 762mW |
Standby Power | ≤ 27 mW Standby |
Platform Support | NVIDIA Jetson Orin Nano / NX, NVIDIA Xavier NX, NVIDIA Jetson Nano, NXP i.MX93, NXP i.MX8M Nano / Mini / Plus, TI Sitara™ AM62 / AM62A / AM67, TI Jacinto™ TDA4VM / TDA4VH |
Operation Systems | Linux, Yocto, Android |
SDK | VizionViewer™ / VizionSDK |
Dimensions | 24.5(W) x 24.5(H) x 12.74(D) mm |
Weight | ≤ 3 grams |
Operation Temperature | -30°C to +70℃ |
Certification | Compliant with CE / FCC / RoHS / REACH directives |
Brand | TechNexion |
Country of Origin | Taiwan |
HTSN | 8525.80.5050 |
ECCN | EAR99 |
REACH / RoHS | Yes |
Focus Type | Fixed Focus |
Focal Length | 12 mm |
Aperture | F1.8 |
Lens D-FOV | 34.0° |
Lens H-FOV | 27.0° |
Lens V-FOV | 20.3° |
Module D-FOV | 33.6° ± 5% |
Module H-FOV | 26.8° ± 5% |
Module V-FOV | 20.1° ± 5% |
TTL | 20.43 mm |
BFL | 6.64 mm |
MOD | 0.2 m |
Distortion | < – 3.31% |
IR-Filter | 650 nm |
Lens Operating Temperature | -20°C to +60°C |
