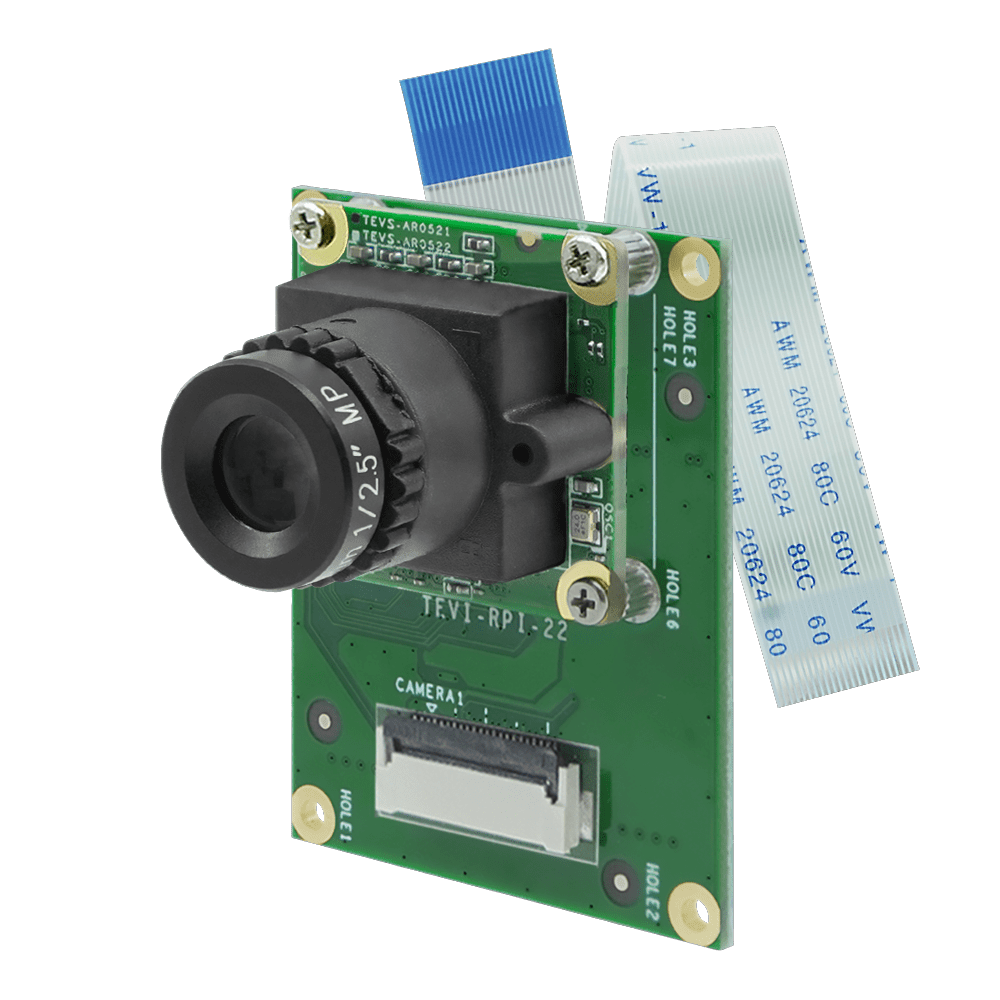

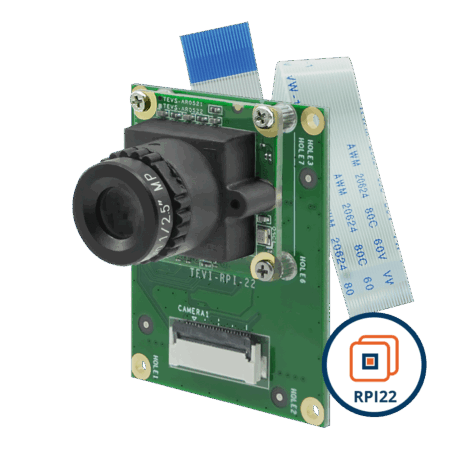

TEVS-AR0521-RPI22 Narrow FOV

TEVS-AR0521-C-S34-IR-RPI22

SKU: TEVSAR0521CS34IRRPI22 Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0521 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB

Available on backorder

Quantity	Discount (%)	Price
1 - 99	—	$92.00
100 - 249	5 %	$87.40
250 - 499	10 %	$82.80
500+	15 %	$78.20

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0521
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	2.2 µm x 2.2 µm
Optical Format	1/2.5" (Diagonal 7.13mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (YUY2)	1280 x 720 @ 60 fps 1280 x 960 @ 60 fps 1920 x 1080 @ 60 fps 2560 x 1440 @ 32 fps 2592 x 1944 @ 24 fps 640 x 480 @ 120 fps
Maximum S/N Ratio	40 dB
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	22 Pin Standardized ZIF Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	2592 x 1944 @ 30FPS ≤ 789 mW
Standby Power	≤ 32 mW Standby

Software Support

Platform Support	NXP i.MX93 TI Sitara™ AM62x / AM62A
Operation Systems	Linux
SDK	VizionViewer™ SDK

Lens Information

Focus Type	Fixed Focus
Focal Length	12 mm
Aperture	F1.8
Lens D-FOV	34.0°
Lens H-FOV	27.0°
Lens V-FOV	20.3°
Module D-FOV	33.6° ± 5%
Module H-FOV	26.8° ± 5%
Module V-FOV	20.1° ± 5%
TTL	20.43 mm
BFL	6.64 mm
MOD	0.2 m
Distortion	< – 3.31%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 19.2(D) mm
Weight	≤ 18 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Spectral Characteristics

AR0521 Spectral Characteristics

Switch Setting

AR0521 Switch

You may be interested in…

TEVS-AR0521-C-S85-IR-RPI22

MIPI-CSI2 Sensor onsemi AR0521 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB

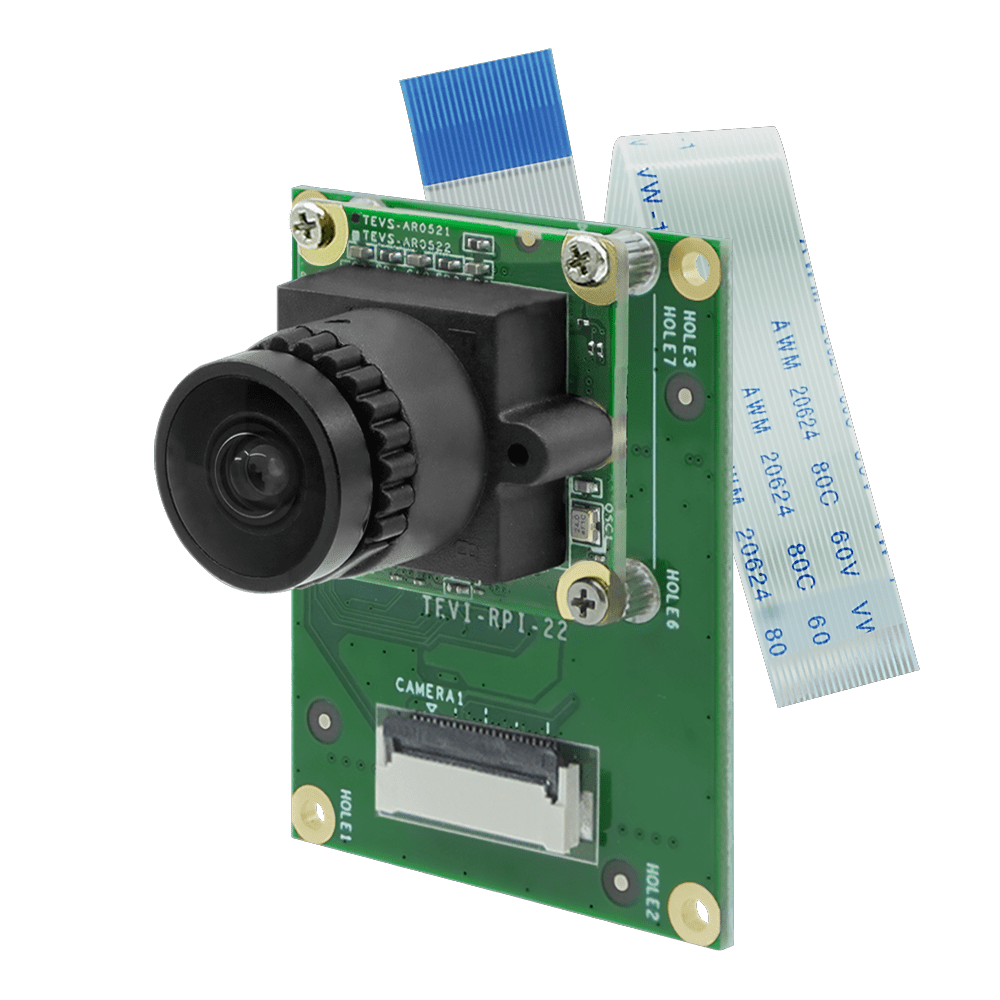

TEVS-AR0521-C-S140-IR-RPI22
