TEVS-AR0544-M-SB-NXP

Name: TEVS-AR0544-M-SB-NXP
Brand: TechNexion
SKU: TEVSAR0544MSBNXP
Availability: PreOrder

SKU: TEVSAR0544MSBNXP Category: Mini-SAS Brand: TechNexion

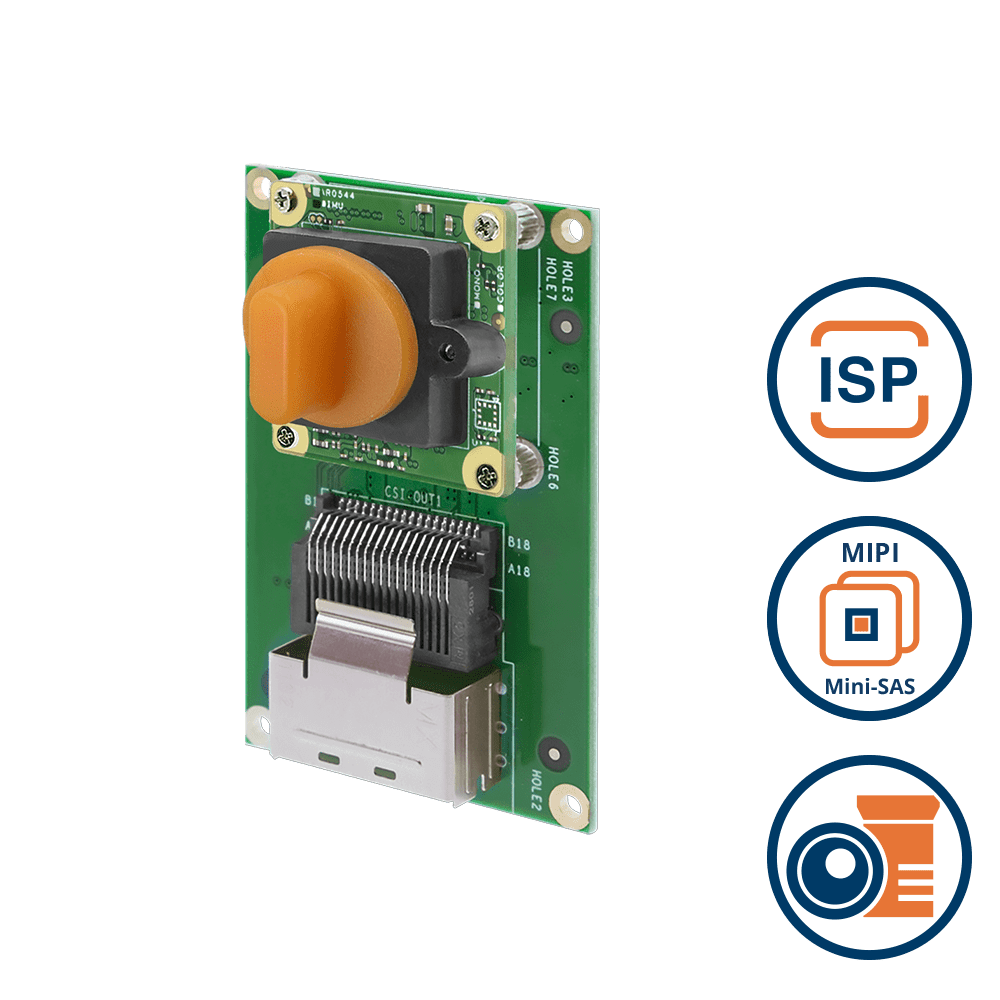

MIPI CSI-2 Sensor onsemi AR0544 5MP Monochrome Rolling Shutter with ISP + S Mount M12 Lens Holder + MINI-SAS Cable for NXP i.MX8 EVK

Product Brief

$147.00Available on backorder

Factory Stock

Available to order

Specifications

Camera Information

CMOS Sensor	onsemi AR0544
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	1.4 μm x 1.4 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	39.9 dB
Input Clock Range	48 MHz
Optical Format	1/4.2” (Diagonal 6.05 mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono
Maximum Frame Rate (YUY2)	2592 x 1944 @ 24 fps 2560 x 1440 @ 32 fps 1920 x 1080 @ 60 fps 1280 x 960 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 120 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	Molex 757830132 36 Pin NXP EVK Kit Connector

Power Specifications

Software Support

Platform Support	NXP i.MX95 NXP i.MX8M Nano / Mini / Plus
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
