TEVS-AR0521-C-S34-IR-NXP

Name: TEVS-AR0521-C-S34-IR-NXP
Brand: TechNexion
SKU: TEVSAR0521CS34IRNXP
Availability: InStock

SKU: TEVSAR0521CS34IRNXP Category: Mini-SAS Brand: TechNexion

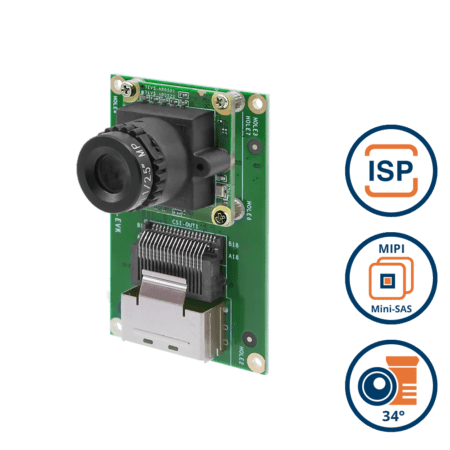

MIPI-CSI2 Sensor onsemi AR0521 5MP Color Rolling Shutter with ISP + 34 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

Product Brief

29 in stock (can be backordered)

Specifications

Camera Information

CMOS Sensor	onsemi AR0521
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	2.2 µm x 2.2 µm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	40 dB
Input Clock Range	48 MHz
Optical Format	1/2.5" (Diagonal 7.13mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	2592 x 1944 @ 24 fps 2560 x 1440 @ 32 fps 1920 x 1080 @ 60 fps 1280 x 960 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 120 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	Molex 757830132 36 Pin NXP EVK Kit Connector

Power Specifications

Software Support

Platform Support	NXP i.MX95 NXP i.MX8M Nano / Mini / Plus
Operation Systems	Linux
SDK	VizionViewer™ / VizionSDK

Lens Information

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
