PICO-IMX93

  • NXP i.MX 93 applications processor
  • Up to 2 Cortex-A55 1.7 GHz processors
  • M33 250 Mhz MCU processor
  • Arm Ethos U-65 microNPU
  • Pre-Certified Wireless Radio (Wi-Fi + Bluetooth)

Order this product

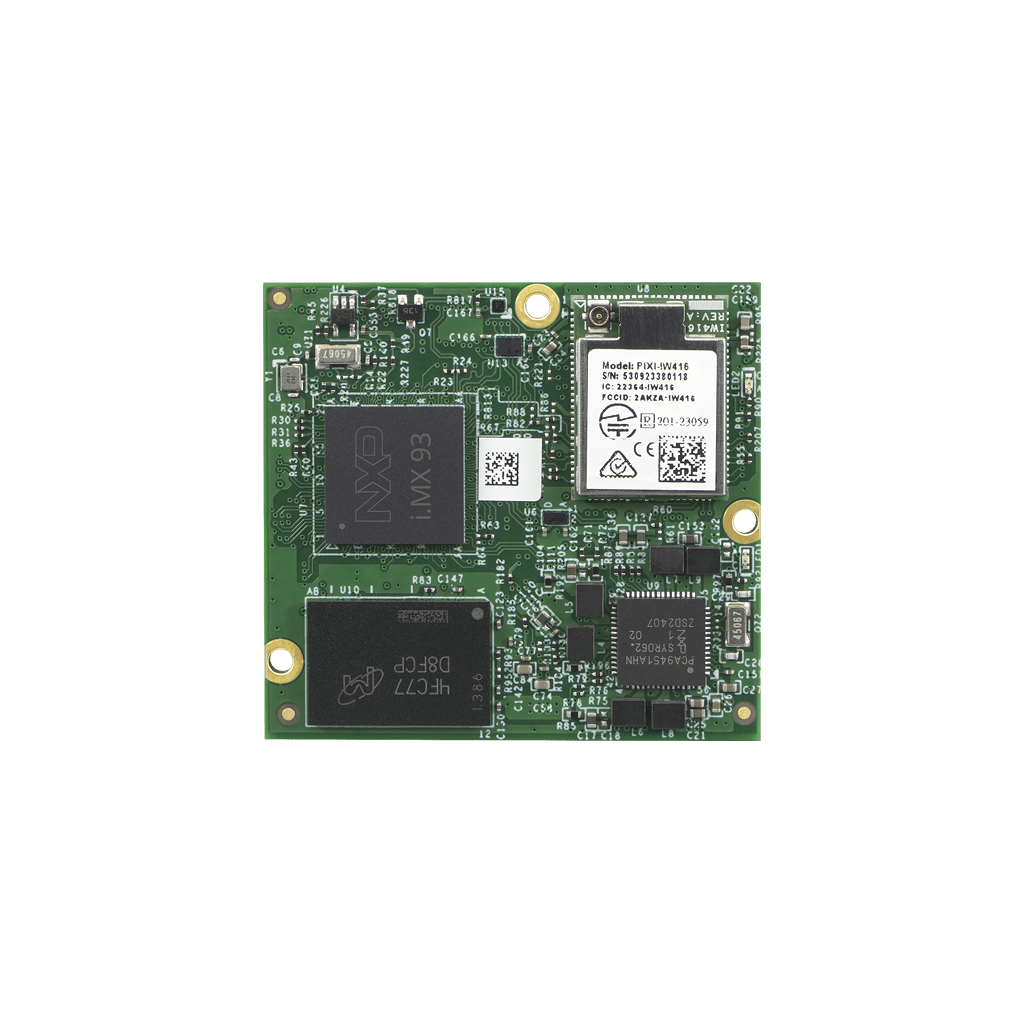

PICO-IMX93 TOP

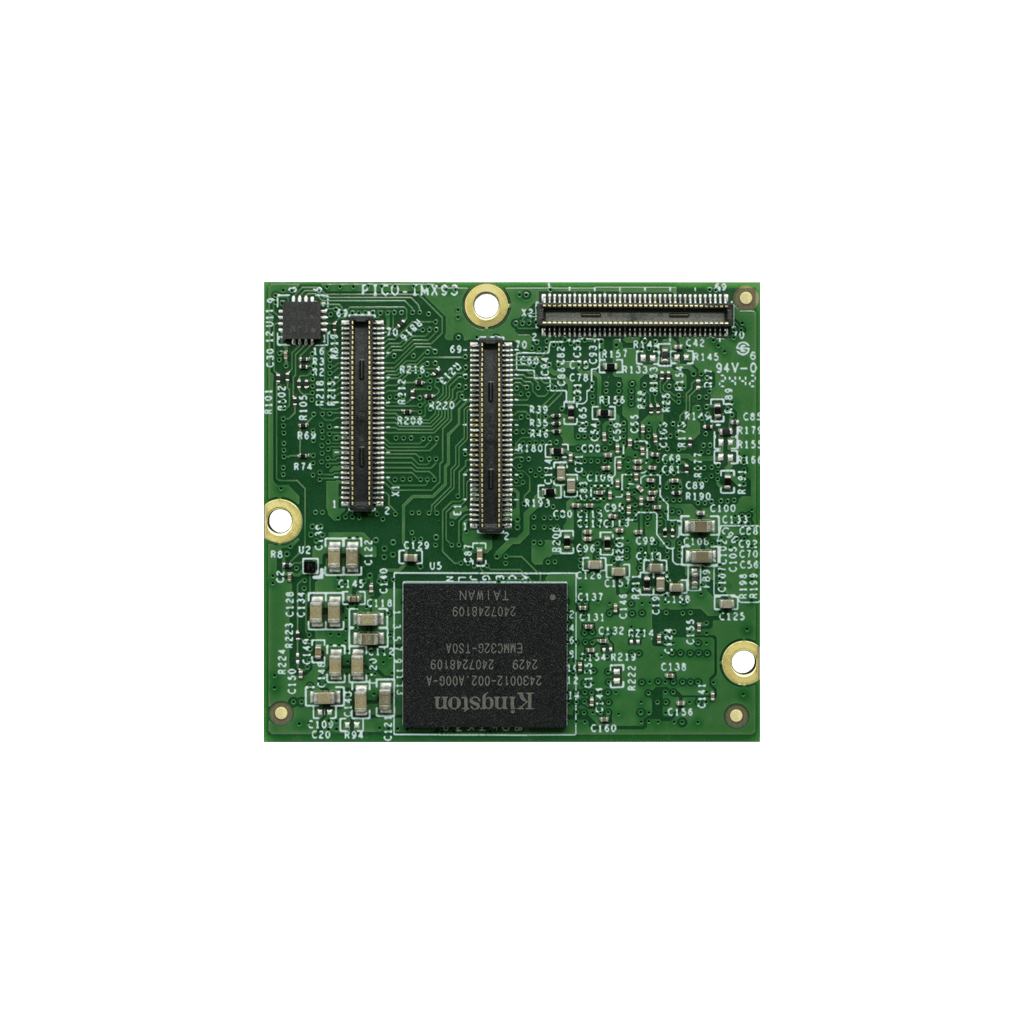

PICO-IMX93 Back

PICO-IMX93 Highlights

Performance

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Software Platform

We advocate Open Source Software and support Linux, Yocto and Debian. Perfect solutions to success can be tailored easily.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Specifications

Core System
Processor

NXP i.MX93

Architecture

Arm Cortex A55 + Cortex M33

PMIC

NXP PCA9451

Memory

Upto 2GB LPDDR4x

Storage

32GB eMMC (default)

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM

AI / Vision Capabilities
AI / ML

NPU Ethos U-65 0.5 TOPS​

Camera

MIPI CSI (2 lanes)

Connectivity
Network LAN

RGMII

Wi-Fi

NXP IW416 Wi-Fi 4 – 802.11 a/b/g/n (optional)

Bluetooth

NXP IW416 Bluetooth (optional)

Antenna

MHF4 connector (optional)

Signaling
LVDS

1x Single Channel LVDS

TTL

1x

MIPI DSI

1x

MIPI CSI2

1x

USB 2.0

2x

I²S

2x

UART

2x

I²C

3x

SDIO/SD/MMC

1x SDIO

PWM

1x

GPIO

10x

RGMII

1x

Video
GPU Engine

PXP – Hardware Compositor

Audio
Audio Codec

On carrier board

Audio Interface

I²S

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Software Support
Standard Support

Linux
Yocto
Debian

Environmental and Mechanical
Dimensions

40 (W) x 37 (H) x 5 (D) mm

Weight

8 grams

Form Factor

PICO

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +60°C
Industrial: -40°C to +85°C

Certification and Compliance
USA

FCC ID: 2AKZA-IW416

Canada

IC: 22364-IW416

European Union

EN 55032 / EN 55035
EN 300 328 v2.2.2
EN 301 893 v2.1.1

Japan

TELEC: 201-230590

Australia / New Zealand

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 218991 (Bluetooth 5.2)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

Dimensions
