PICO-IMX6ULL

  • NXP i.MX 6UL/ULL applications processor
  • Low Power Cortex-A7 processor
  • Certified Wi-Fi 5 and Bluetooth LE

Starting from USD 25

Order this product
PICO-IMX6ULL-9377 TOP

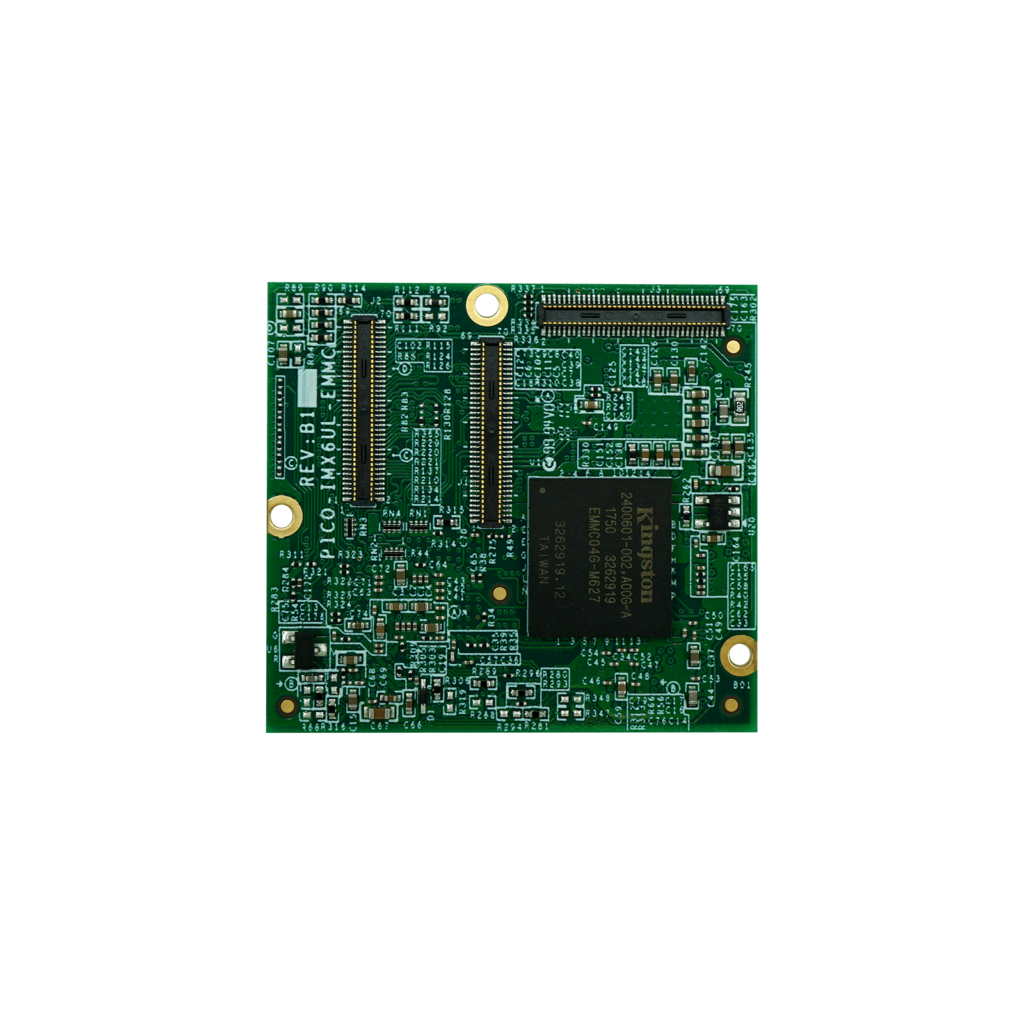

PICO-IMX6ULL BACK

Highlights

32-bit Processing

The NXP i.MX 6UL / ULL brings a solid up to 900Mhz 32-bit Arm Cortex-A7 architecture to your embedded device.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

I/O

Rich I/O is available for extension and connection.

Power Optimized

Various power modules provide a wide power input voltage range.

Rugged and Reliable

Operates reliably in harsh industrial environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Software Platform

We advocate Open Source Software and support Linux, Ubuntu and Yocto. Perfect solutions to success can be tailored easily.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX6UL/ULL to a powerful SOC that the i.MX8M or i.MX8M Mini brings to the PICO System-on-Module family.

Core System
Processor

NXP i.MX6ULL
NXP i.MX6UL

Architecture

ARM Cortex-A7

PMIC

NXP PF3000

Memory

Upto 1GB DDR3L

Storage

4GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM

Connectivity
Network LAN

RMII

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna

MHF4 connector (optional)

Signaling
I/O

RMII
RGB TTL
USB
USB OTG
I²S
CAN
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline

Audio
Audio Codec

On carrier board

Audio Interface

I²S (1 channel)

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Operating Systems
Standard Support

Linux
Yocto
Ubuntu

Extended Support

Commercial Linux

Environmental and Mechanical
Dimensions

37 x 40 mm

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C
Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

8 grams

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 150839 (Bluetooth 5)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

PICO-IMX6ULL Block Diagram
PICO-IMX6ULL Dimensions
Order Information Example:

PICO-IMX6G2-xx-Rxx-Exx-xx-xx

PICO-IMX6Y2-xx-Rxx-Exx-xx-xx

 CodeDescription
ProcessorIMX6GNXP i.MX6 Ultralite
IMX6YNXP i.MX6 ULL
Processor Speed05528MHz
09900MHz
MemoryR02256MB DDR3L
R05512MB DDR3L
R101GB DDR3L
Storage E044GB eMMC
Bluetooth / WiFi--
93771x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac + Bluetooth
Temperature Range -Commercial Temperature range (0~60° C)(Default)
TEExtended Temperature range (-20~70° C)
TIIndustrial Temperature range (-40~85° C)



Standard Parts
PICO-IMX6UL TOP

PICO-IMX6G205-R02-E04

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 256MB DDR3L + 4GB EMMC

PICO-IMX6UL-9377 TOP

PICO-IMX6G205-R02-E04-9377

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 256MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH

PICO-IMX6UL TOP

PICO-IMX6G205-R05-E04

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 512MB DDR3L + 4GB EMMC

PICO-IMX6UL-9377 TOP

PICO-IMX6G205-R05-E04-9377

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 512MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH

PICO-IMX6ULL TOP

PICO-IMX6Y209-R02-E04

PICO SOM NXP I.MX6 ULL 900MHZ + 256MB DDR3L + 4GB EMMC

PICO-IMX6ULL-9377 TOP

PICO-IMX6Y209-R02-E04-9377

PICO SOM NXP I.MX6 ULL 900MHZ + 256MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH

PICO-IMX6ULL TOP

PICO-IMX6Y209-R05-E04

PICO SOM NXP I.MX6 ULL 900MHZ + 512MB DDR3L + 4GB EMMC

PICO-IMX6ULL-9377 TOP

PICO-IMX6Y209-R05-E04-9377

PICO SOM NXP I.MX6 ULL 900MHZ + 512MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH

PICO-IMX6UL TOP

PICO-IMX6G205-R02-E04-TI

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 256MB DDR3L + 4GB EMMC INDUSTRIAL TEMP -40~85C

PICO-IMX6UL-9377 TOP

PICO-IMX6G205-R02-E04-9377-TI

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 256MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

PICO-IMX6ULL TOP

PICO-IMX6Y208-R02-E04-TI

PICO SOM NXP I.MX6 ULL 792MHZ + 256MB DDR3L + 4GB EMMC INDUSTRIAL TEMP -40~85C

PICO-IMX6ULL-9377 TOP

PICO-IMX6Y208-R02-E04-9377-TI

PICO SOM NXP I.MX6 ULL 792MHZ + 256MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

PICO-IMX6UL TOP

PICO-IMX6G205-R05-E04-TI

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 512MB DDR3L + 4GB EMMC INDUSTRIAL TEMP -40~85C

PICO-IMX6UL-9377 TOP

PICO-IMX6G205-R05-E04-9377-TI

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 512MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

PICO-IMX6ULL TOP

PICO-IMX6Y208-R05-E04-TI

PICO SOM NXP I.MX6 ULL 792MHZ + 512MB DDR3L + 4GB EMMC INDUSTRIAL TEMP -40~85C

PICO-IMX6ULL-9377 TOP

PICO-IMX6Y208-R05-E04-9377-TI

PICO SOM NXP I.MX6 ULL 792MHZ + 512MB DDR3L + 4GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

Getting Started with the PICO-IMX6UL/ULL

PICO-PI-IMX6ULL Starter Kit

Your Evaluation Kit contains :

  • PICO-IMX6ULL System-on-Module (SOM)
  • PICO-PI-FL Carrier Board
  • USB Type-C cable to power and program your board
  • Optional 5 inch touch enabled display
