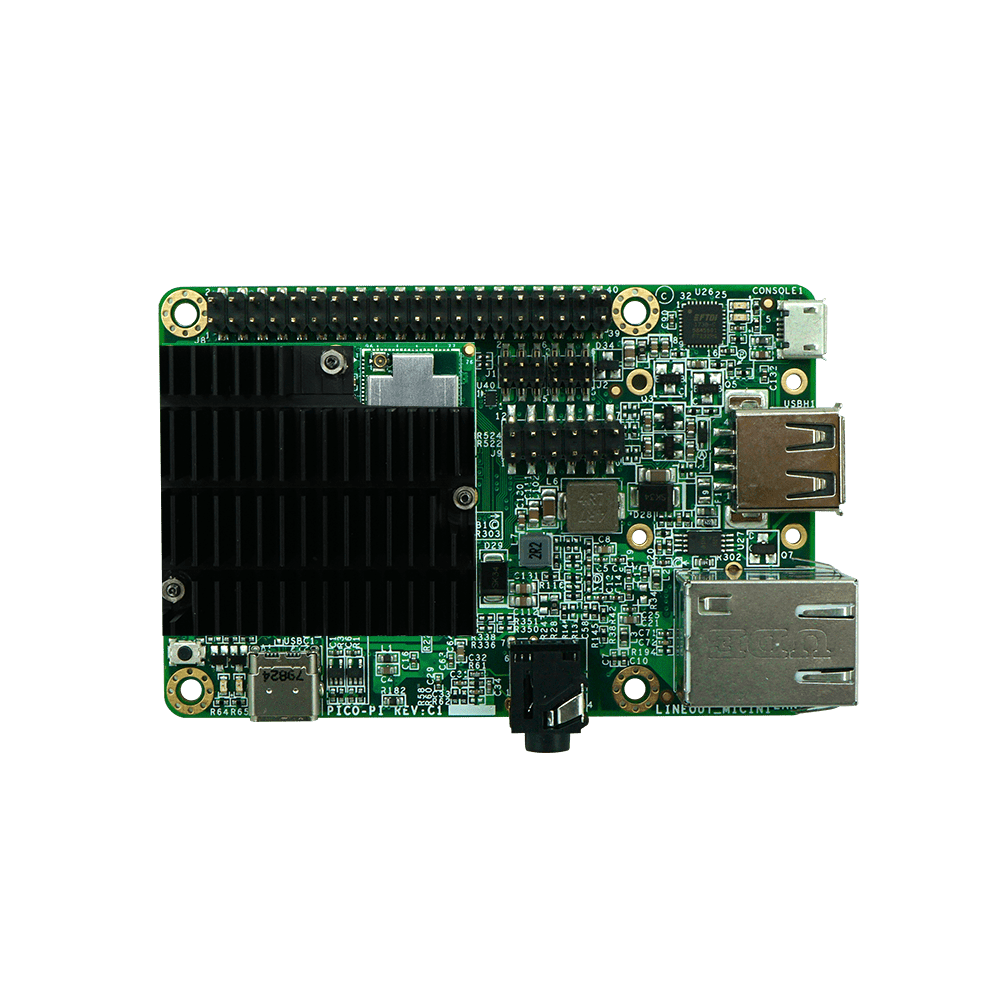

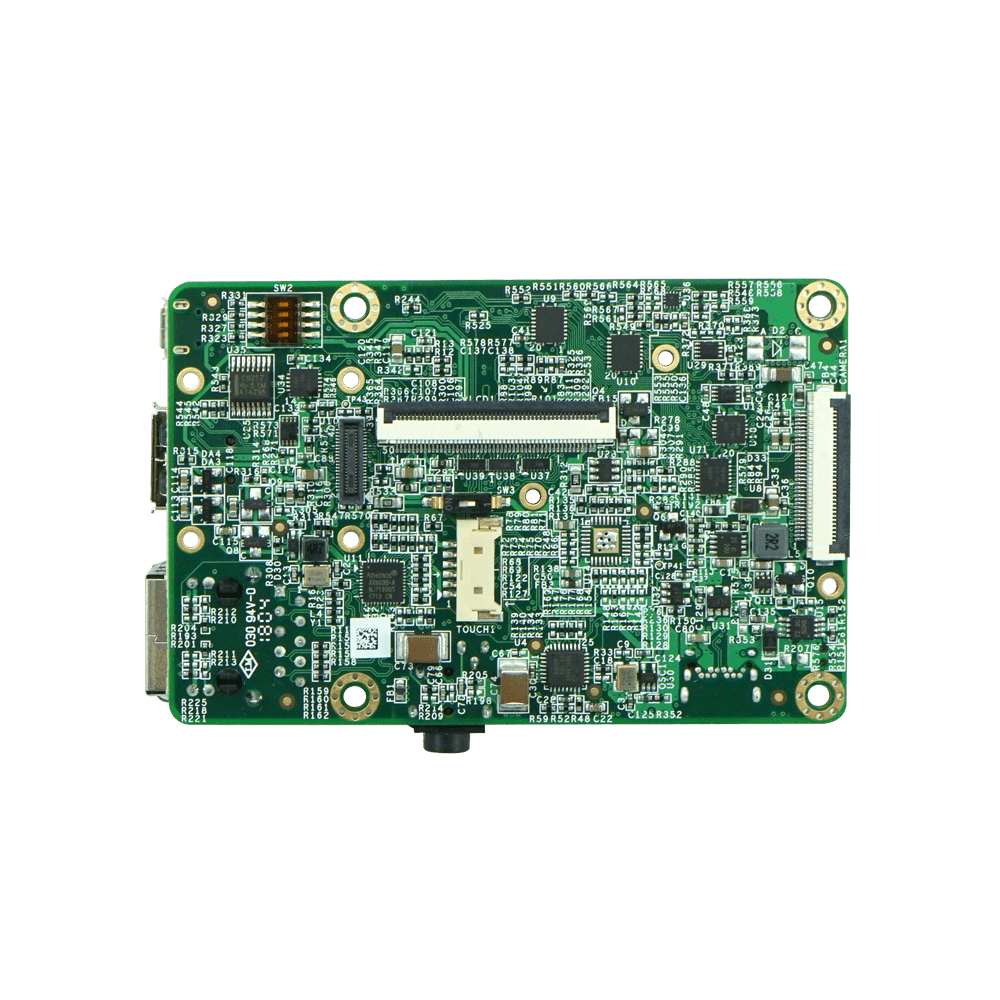

NXP i.MX6UL/ULL System-on-Module Starting Kit with Cortex-A7 PICO SOM Yocto, Linux, Source code - PICO-PI-IMX6ULL

PICO-PI-IMX6ULL Highlights

32-bit Processing

The NXP i.MX 6UL / ULL brings a solid up to 900Mhz 32-bit Arm Cortex-A7 architecture to your embedded device.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

I/O

Rich I/O is available for extension and connection.

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Sortware Platform

We advocate Open Source Software and support Linux, Ubuntu and Yocto. Perfect solutions to success can be tailored easily.

Interfaces

Packed with a wide array of interfaces. Our System-on-Modules are as a Swiss Army knife when connecting over serial port, CAN bus, I2C, SPI or USB.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX6UL/ULL to a powerful SOC that the i.MX8M or i.MX8M Mini brings to the PICO System-on-Module family.

Specifications

Core System

Processor	NXP i.MX6ULL NXP i.MX6UL
Architecture	ARM Cortex-A7
PMIC	NXP PF3000
Memory	512MB DDR3L
Storage	4GB eMMC
Board-to-Board Connector	PICO 70-pin Hirose connectors
System on Module	PICO SOM
Debug Interface	Micro USB debug

Connectivity

Network LAN	1x Micrel KSZ8081RNBCA Fast Ethernet LAN
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	RMII RGB TTL USB USB OTG I²S CAN UART SPI I²C PWM GPIO

Video

GPU Engine	Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline

Audio

Audio Codec	NXP SGTL5000
Audio Interface	I²S (1 channel)
Audio Connectors	CTIA compliant 3.5mm audio jack

Power Specifications

Power Input	5V over USB Type C
Power Consumption	Depending on Configuration
Power Connector	USB Type C Connector

Software Support

Standard Support	Linux Yocto

External Connectors

Network	1x RJ45
USB	1x USB 2.0 Host 1x USB 2.0 OTG (Type-C)
Buttons	1x Reset

Environmental and Mechanical

Dimensions	85 x 56 mm
Weight	50 grams
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	Commercial: 0°C to +60°C
Vibration	1 Grms random 5-500Hz hr/axis

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with CE / FCC / RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2) QDID 193238 (Bluetooth 5)

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes

Block Diagram

Dimensions

Documentation

Getting Started

Product Brief

Quick Installation Guide

PICO Product Family

TechNexion Software Loader

OS Support

Yocto

Source Code

Linux

Mechanical

DXF File

STP 3D File

PCB Footprint

Carrier Board

Schematics

PCB Layout

Gerber File

Certifications

Declaration of Conformity

RoHS / REACH

Conflict Minerals
