STIX-9377-M2-AE

Order this product

Product Brief

Evaluation Kit

STIX-9377-M2-AE TOP

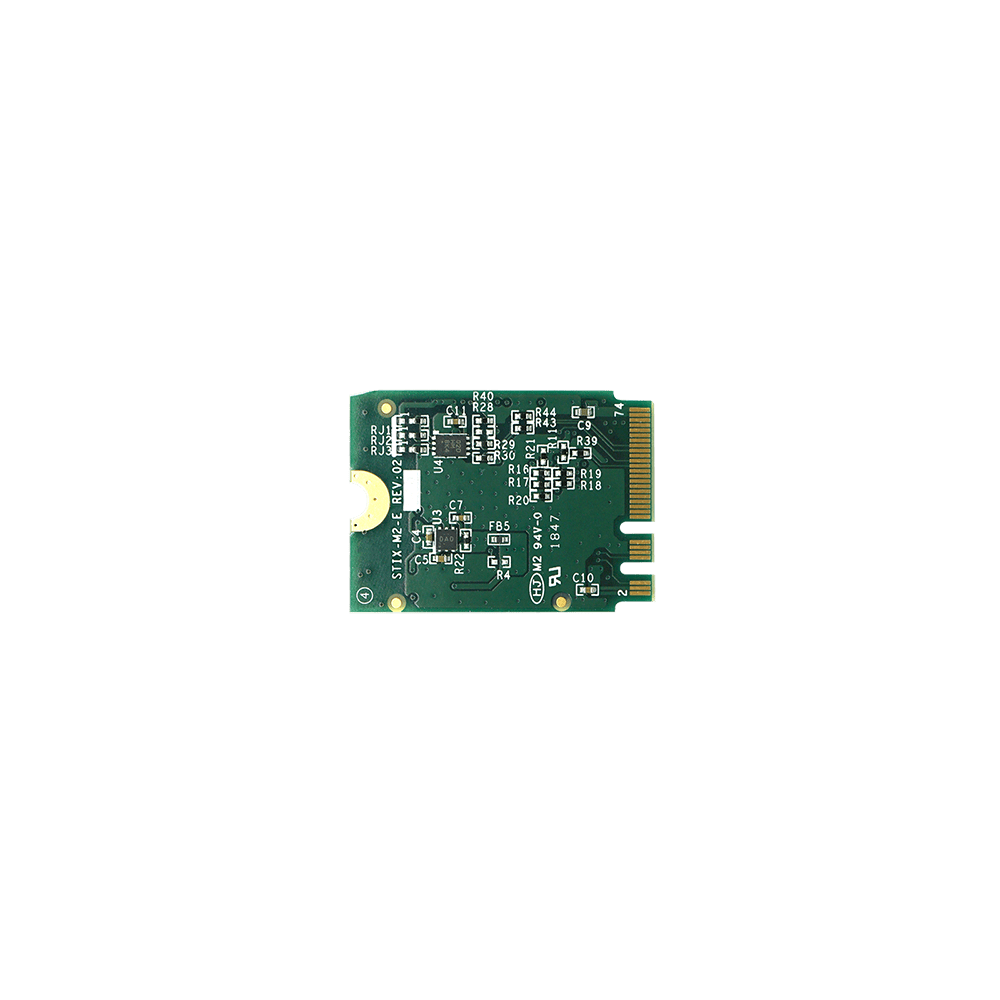

STIX-9377-M2-AE BACK

Highlights

Connectivity

Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Power Specifications

Power Input	3.3V DC +/-10%
Power Consumption	Depending on Configuration

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical

Dimensions	22 x 30 mm
Form Factor	M.2 KEY-E Type 2230
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	Commercial: 0° to +60° C
Vibration	1 Grms random 5-500Hz hr/axis
Weight	≤ 3 grams

STIX-9377-M2-AE Block Diagram

STIX-9377-M2-AE Dimensions

Documentation

Getting Started

Product Brief

Product Datasheet

DXF File

STP 3D File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals
