PIXI-IW416

  • NXP IW416 802.11a/b/g/n/ac + Bluetooth Combo Module
  • Pre-certified FCC/CE/IC/RCM/TELEC
  • Linux or Android Integration support for NXP i.MX Platform
  • SDIO + UART Interface
  • M.2 1216 Formfactor

Order this product

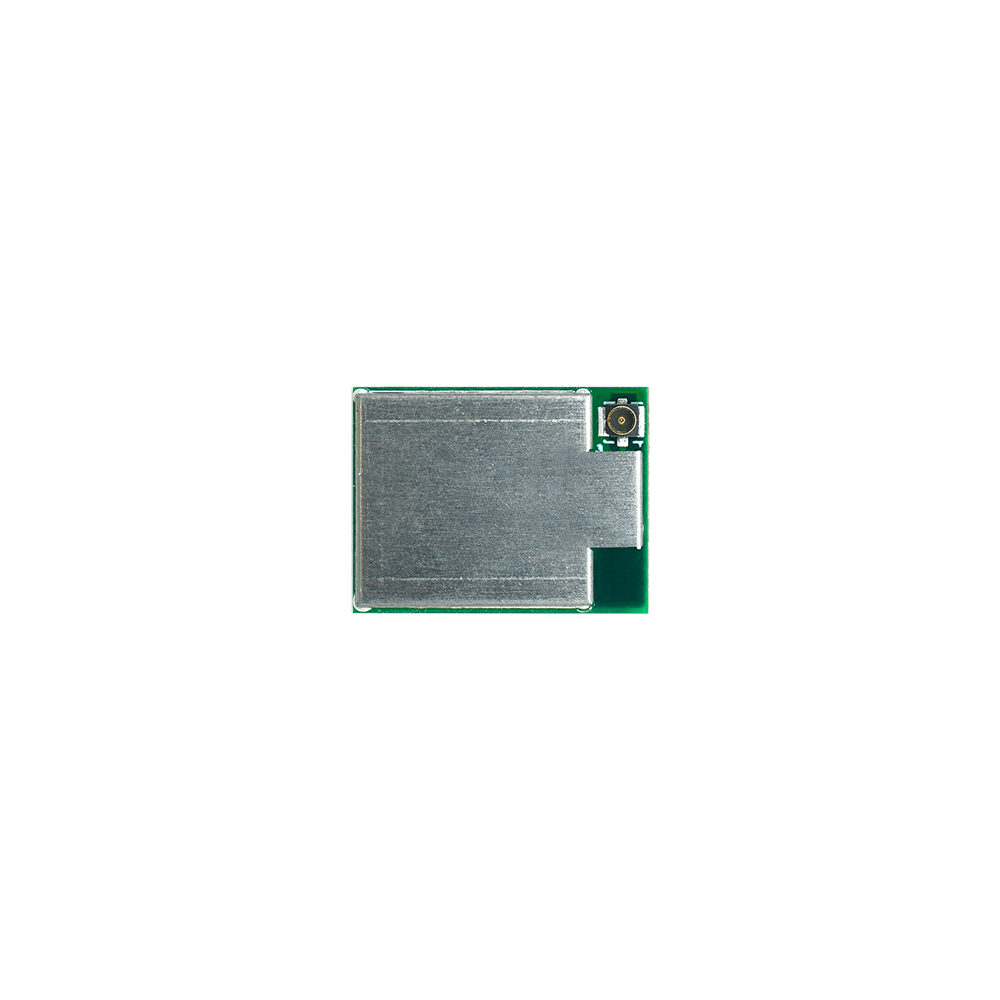

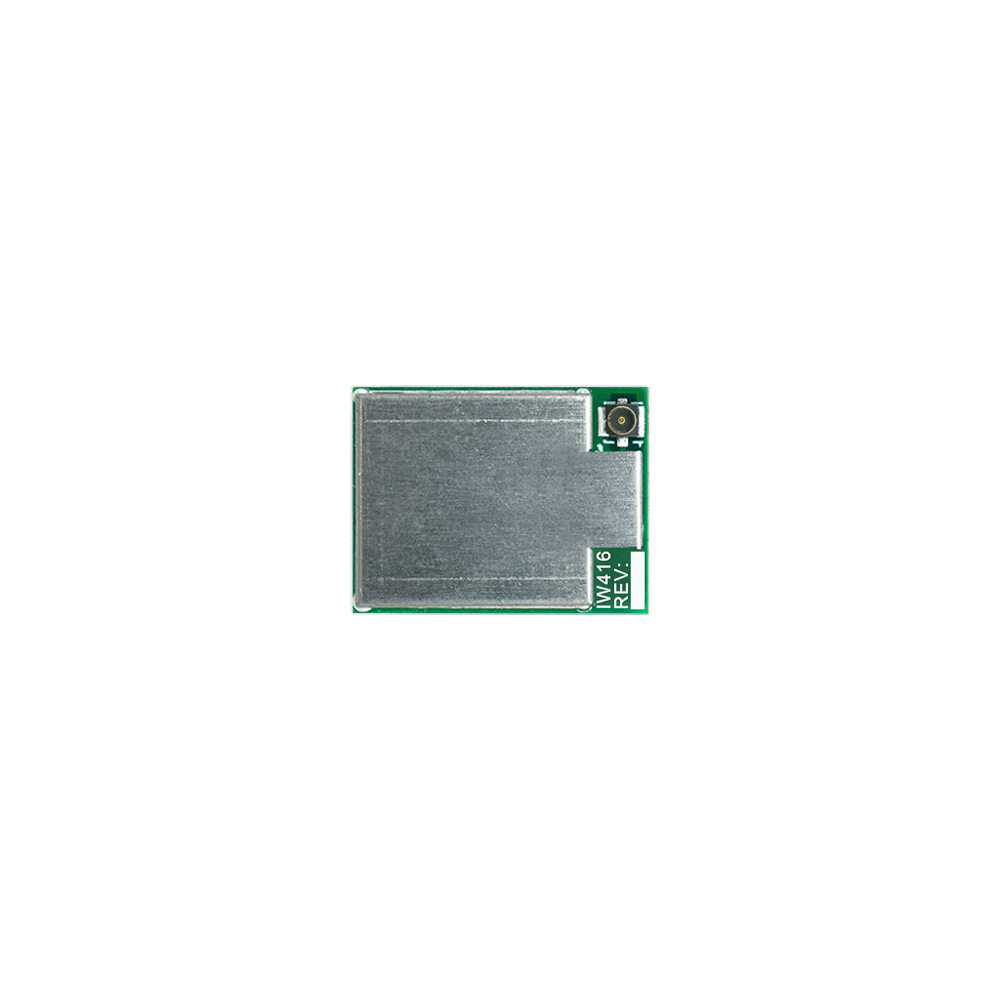

PIXI-IW416 TOP

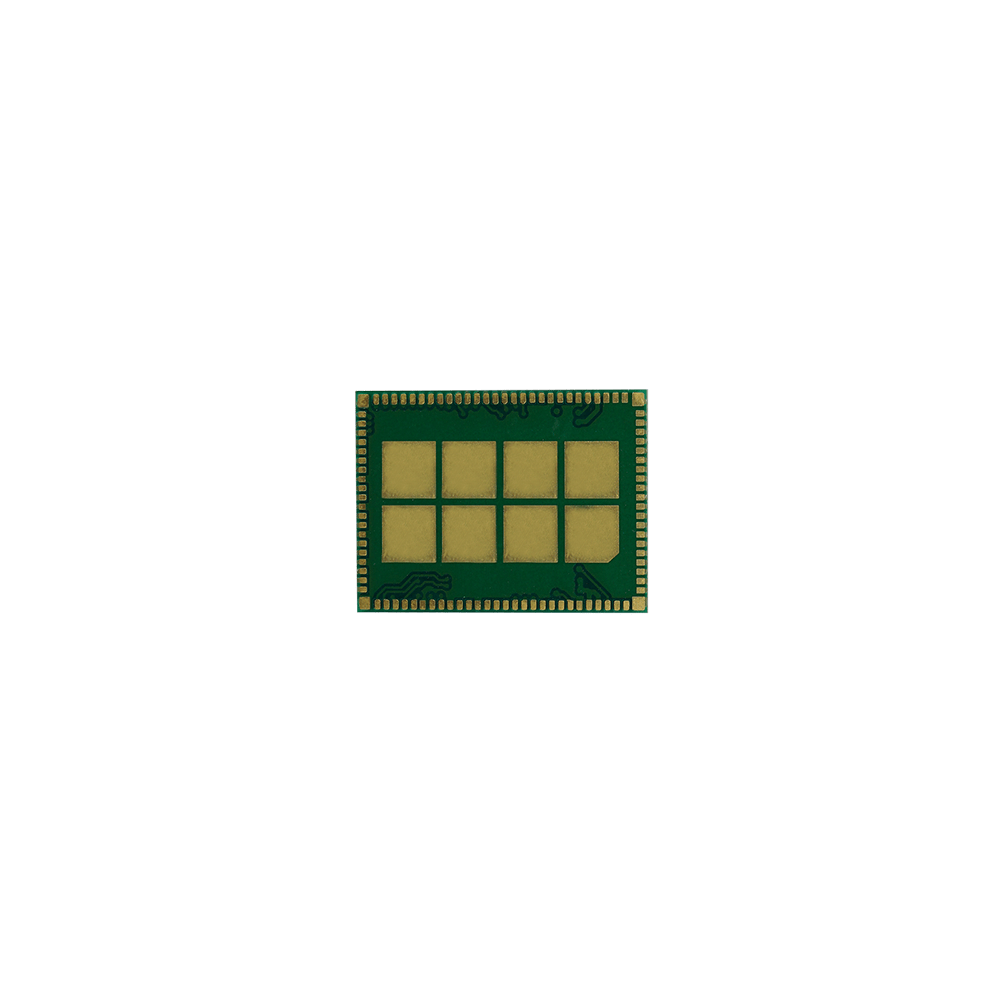

PIXI-IW416 BACK

PIXI-IW416 Highlights

Specifications

Connectivity
Wi-Fi

NXP IW416 Wi-Fi – 802.11 a/b/g/n/ac

Bluetooth

NXP IW416 Bluetooth

Antenna

MHF4 connector
Power Specifications
Power Input

3.3V DC

Power Consumption

Depending on Configuration
Environmental and Mechanical
Dimensions

12 x 16 mm

Weight

≤ 2 grams

Form Factor

M.2 LGA Type 1216

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Operation Temperature

Industrial: -40°C to +85°C

Vibration

1 Grms random 5-500Hz hr/axis
Certification and Compliance
FCC

FCC ID: 2AKZA-IW416

IC

IC: 22364-IW416

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with CE / FCC / RoHS / REACH directives

Bluetooth Logo

QDID 193238 (Bluetooth 5)

Dimensions

PIXI-IW416 Dimensions

Documentation

Getting Started

Product Brief

Product Datasheet

Mechanical

DXF File

STP 3D File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals
