CLIX-9377

Order this product

Product Brief

Evaluation Kit

CLIX-9377 TOP

CLIX-9377 BACK

Highlights

Connectivity

Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Power Specifications

Power Input	3.3V DC
Power Consumption	Depending on Configuration

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with CE / FCC / RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical

Dimensions	20 x 25 mm
Form Factor	CLIX Module
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	Industrial: -40° to +85° C
Vibration	1 Grms random 5-500Hz hr/axis
Weight	≤ 3 grams

CLIX-9377 Block Diagram

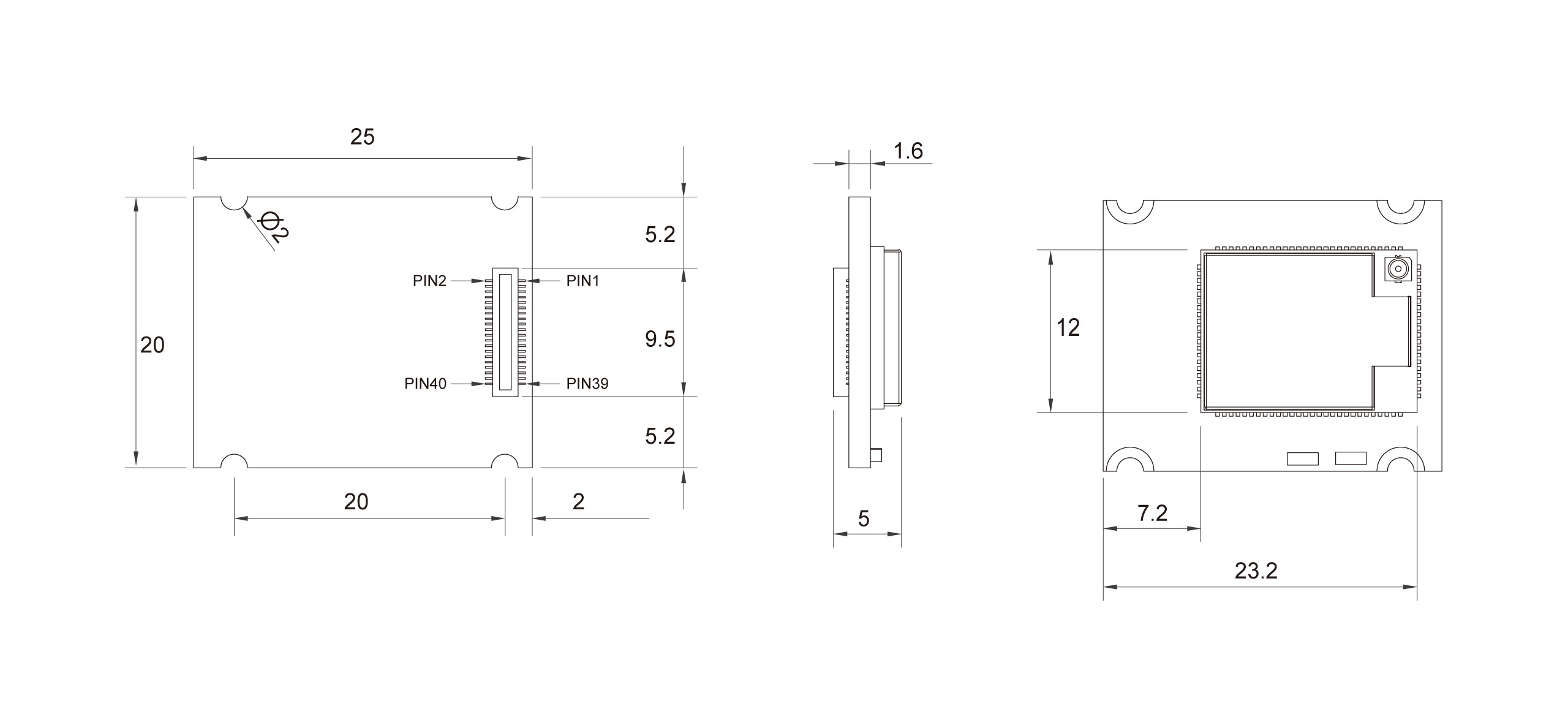

CLIX-9377 Dimensions

Get started with PIXI-9377

Complete evaluation kit to integrate the PIXI-9377 into your embedded system.

Learn More Buy Now

Documentation

Getting Started

Product Brief

Product Datasheet

Mechanical

DXF File

STP 3D File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals
