TEP-0500-IMX6UL
TEP-0500-IMX6UL is a cost-optimized general industrial applications HMI based on an NXP I.MX6UL core Cortex-A7™ processor.
Additional information
| Core System |
|---|
| Processor | NXP i.MX6UL
|
|---|
| Architecture | ARM Cortex-A7
|
|---|
| PMIC | NXP PF3000
|
|---|
| Memory | Upto 1GB DDR3L
|
|---|
| Storage | 4GB eMMC
|
|---|
|
| Connectivity |
|---|
| Network LAN | 2x Micrel KSZ8081RNBCA Fast Ethernet LAN
|
|---|
| Power over Ethernet | PoE function 802.3at (optional)
|
|---|
|
| Power Specifications |
|---|
| Power Input | 12 VDC
9-36V DC (wide power input)
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
| Power Connector | 2-pin Micro-Fit 3.0
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
Ubuntu
|
|---|
|
| Mounting Options |
|---|
| Rear Mounting | 4 mounting clips required (included)
|
|---|
| VESA Mounting | 35*75 VESA MIS C. Standard (separate purchase)
|
|---|
| Surface Mounting | 8 mounting holes
|
|---|
|
| Display |
|---|
| LCD | 5 inch widescreen LCD with LED Backlight
|
|---|
| Resolution | 800 x 480 pixels
|
|---|
| Luminance | 300 cd/m²
|
|---|
| Maximum Colors | 16.7 million
|
|---|
| Touchscreen | Projective Capacitive (multitouch)
|
|---|
|

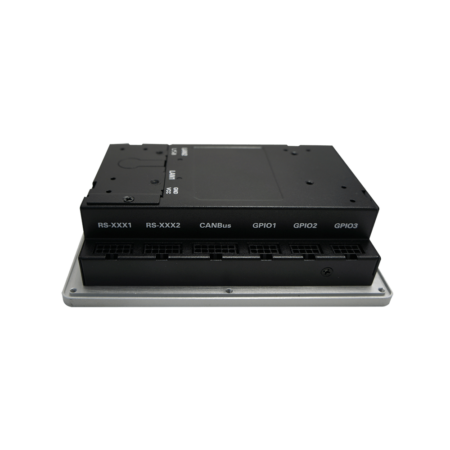

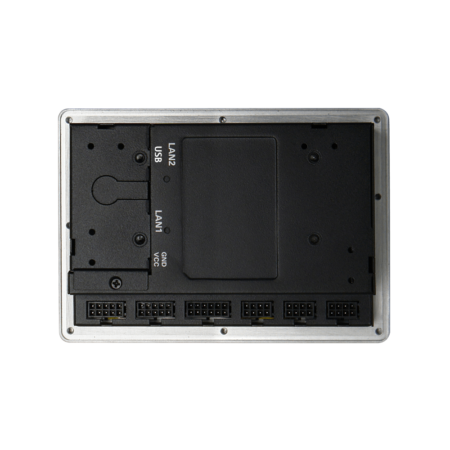

| External Connectors |
|---|
| Network | 2x RJ45
|
|---|
| USB | 1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)
|
|---|
| CAN BUS | 2x Flex CAN version 2.0B compliant
|
|---|
| Serial Port | 4x RS-232
|
|---|
| GPIO Connector | 12x GPIO
|
|---|
| Buttons | 1x Boot Select
1x Reset
|
|---|
| Indicators | 1x Programmable LED
|
|---|
| SD Cardslot | 1x MicroSD Card Slot
|
|---|
|
| Environmental and Mechanical |
|---|
| Enclosure Material | Metal
|
|---|
| Dimensions | 150 (W) x 105 (H) x 42 (D) mm
|
|---|
| Weight | 550 grams
|
|---|
| Frontbezel | Brushed Anodized Aluminium
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| IP Rating | IP65 Front
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Operation Temperature | Commercial: 0°C to +50°C
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8471.90.0000
|
|---|
| ECCN | 5A992.c Mass Market
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
| REACH / RoHS | Yes
|
|---|
|
Blockdiagram
Dimensions
