SKU: C2305120FF Category:
More Information
Product Brief

C-Mount Lens 12mm Fixed Focal Length Aperture Range From F1.4 ~ Close Up To 5 Megapixel Resolution

Out of stock

Specifications

Additional information

Lens Information
Focal Length

12 mm

Aperture

F1.4 ~ Close

Lens D-FOV

47.0°

Lens H-FOV

41.5°

Lens V-FOV

24.0°

TTL

59.28 mm

BFL

12.92 mm

MOD

0.2 m

Distortion

＜ – 1.0%

Lens Operating Temperature

-20°C to +100°C

Image Size

2/3”

Resolution

5MP
Environmental and Mechanical
Weight

97 grams

Material

Metal

Mount Type

C-Mount

Operation Focal

Manual with Lock

Operation Iris

Manual with Lock

Operation Zoom

Fixed

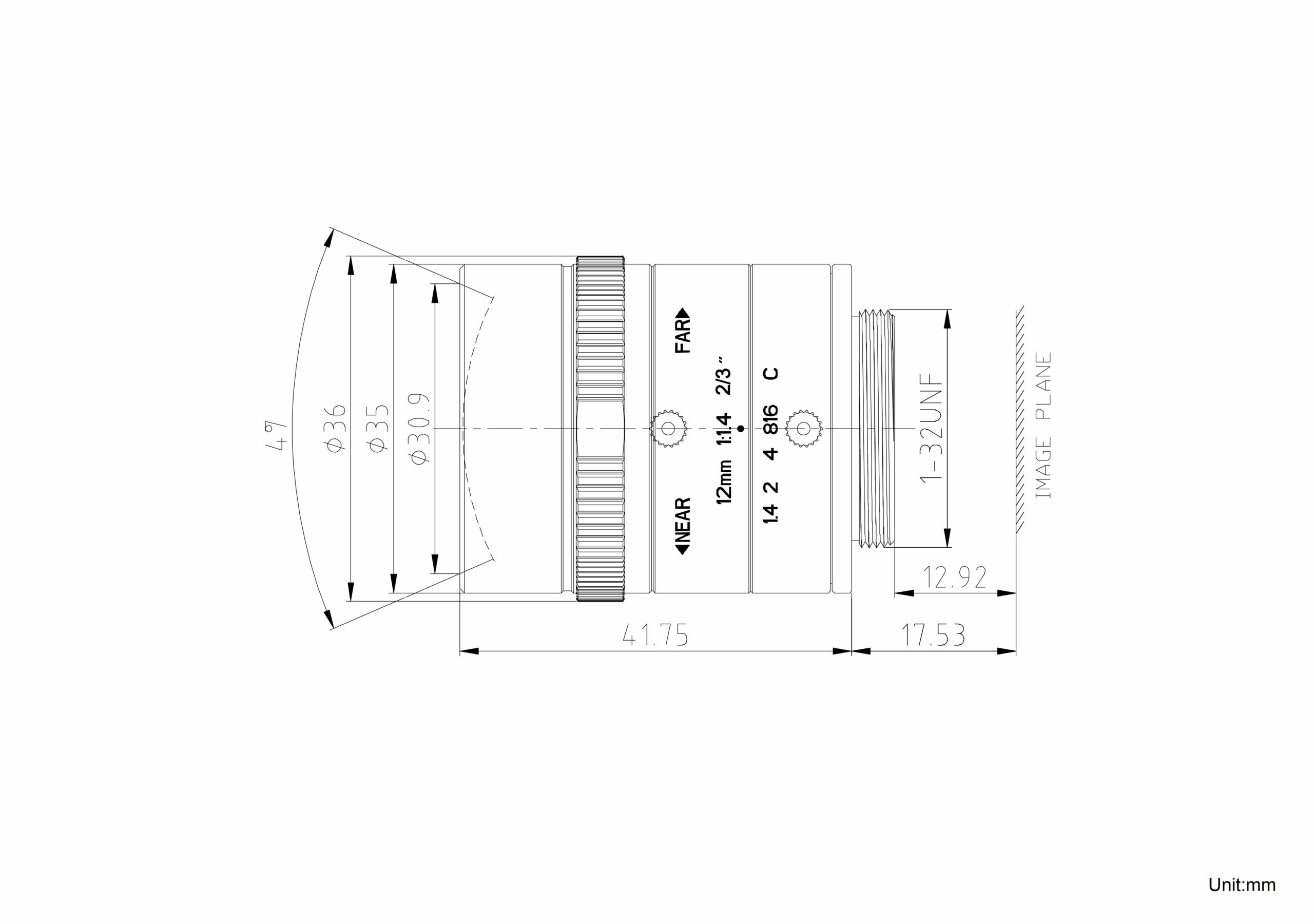

Dimensions

C2305120FF Dimension
