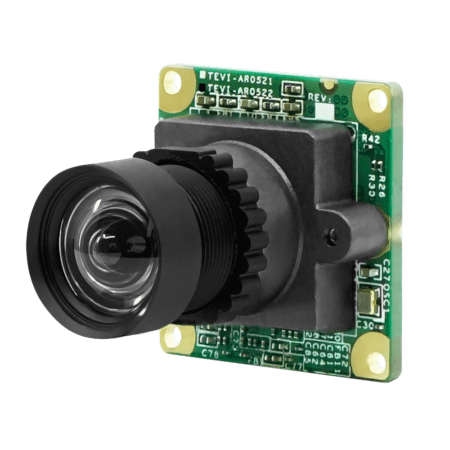

TEVI-AR0522-C-S85-IR RIGHT

TEVI-AR0522-C-S85-IR

SKU: TEVIAR0522CS85IR Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter

1 in stock (can be backordered)

Quantity	Discount (%)	Price
1 - 99	—	$84.00
100 - 249	5 %	$79.80
250 - 499	10 %	$75.60
500+	15 %	$71.40

x

Additional information

Camera Information

CMOS Sensor	onsemi AR0522
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	2.2 µm x 2.2 µm
Optical Format	1/2.5" (Diagonal 7.13mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (UYVY)	2592 x 1944 @ 30 fps 2560 x 1440 @ 40 fps 1920 x 1080 @ 60 fps 1280 x 960 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	40 dB
Input Clock Range	48 MHz
Output Format	UYVY

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Camera Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	2592 x 1944 @ 30 fps ≤ 762mW
Standby Power	≤ 27 mW Standby

Software Support

Platform Support	NXP i.MX8M Nano / Mini / Plus NXP i.MX93 TI Sitara™ AM62x / AM62A TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ SDK

Lens Information

Aperture	F2.8
BFL	4.54 mm
Distortion	< 1.26%
Focal Length	3.9 mm
Focus Type	Fixed Focus
IR-Filter	650 nm
Lens D-FOV	96.0°
Lens H-FOV	80.0°
Lens Operating Temperature	-20°C to +60°C
Lens V-FOV	60.0°
MOD	0.3 m
Module D-FOV	85.2° ± 5%
Module H-FOV	73.0° ± 5%
Module V-FOV	58.1° ± 5%
TTL	22 mm

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 12.74(D) mm
Operation Temperature	-30°C to +70℃
Weight	≤ 3 grams

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

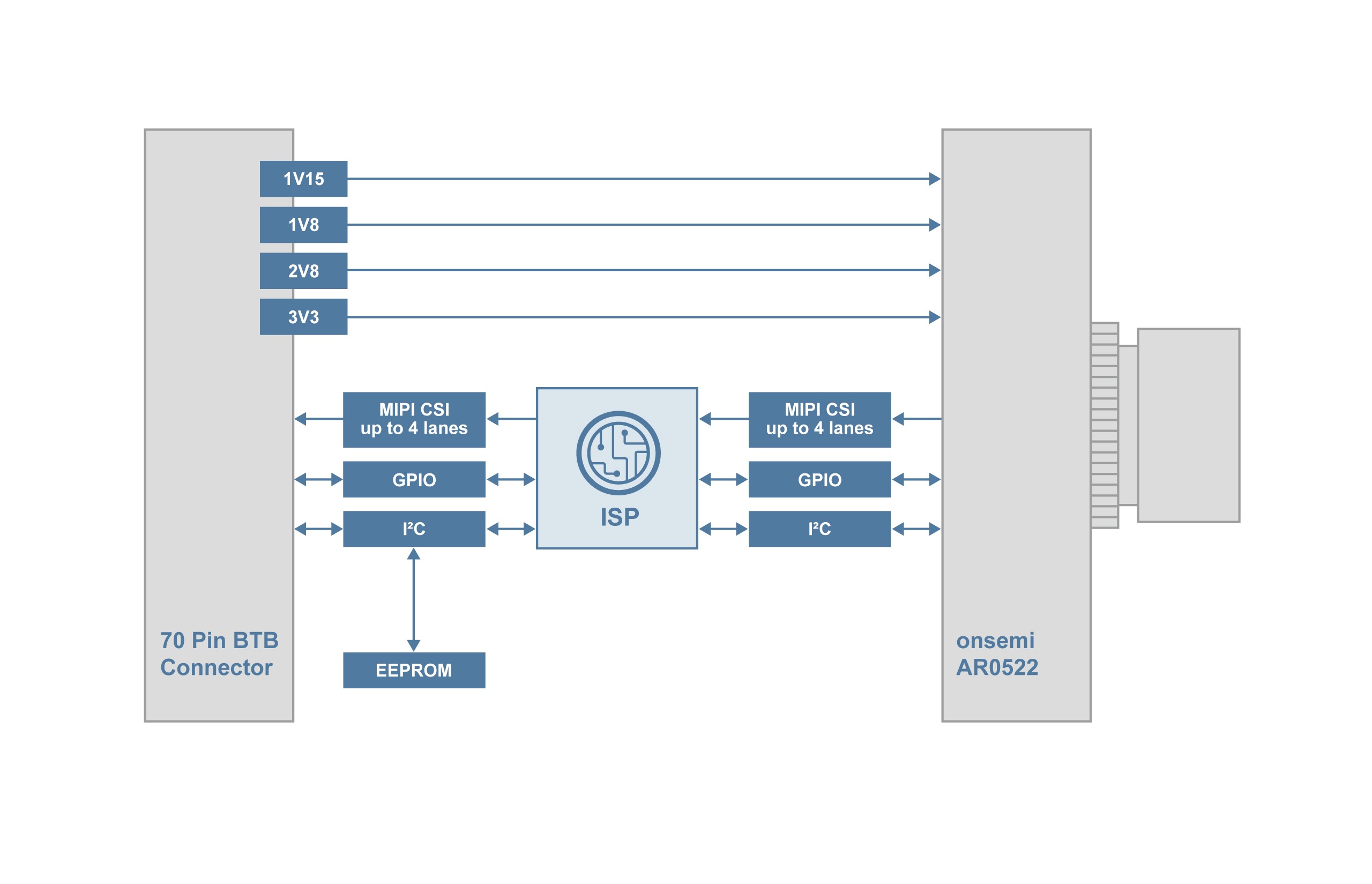

TEVI-AR0522C-S96-IR Block Diagram

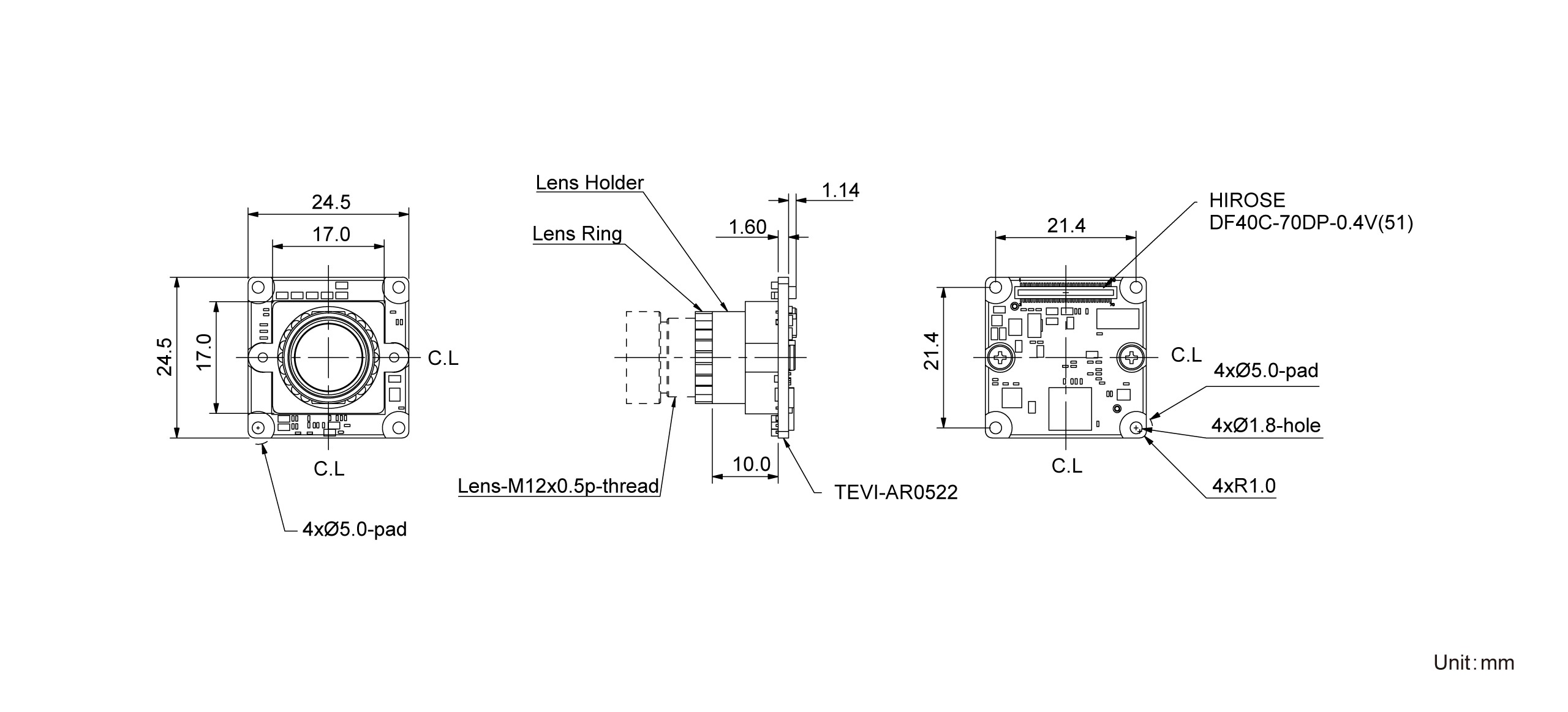

TEVI-AR0522-holder Dimension

AR0522 Spectral Characteristics

AR0522 Switch

You may be interested in…

VCI-AR0522-C-S85-IR

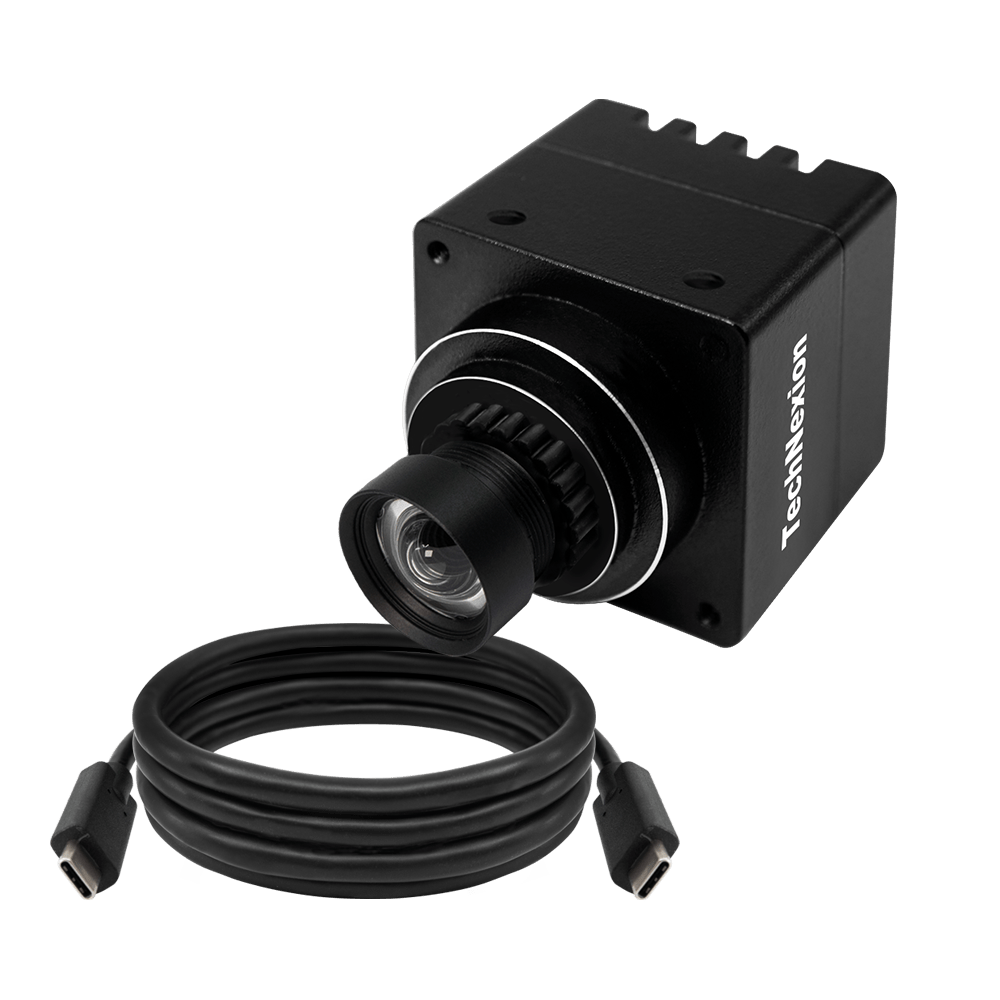

USB3 Type-C Camera with onsemi AR0522 5MP Color Rolling Shutter with Onboard ISP + 85 Degree M12 Lens with IR-Cut Filter + Incl. 1 Meter USB C Cable

TEVI-AR0522-C-S85-IR-RPI22

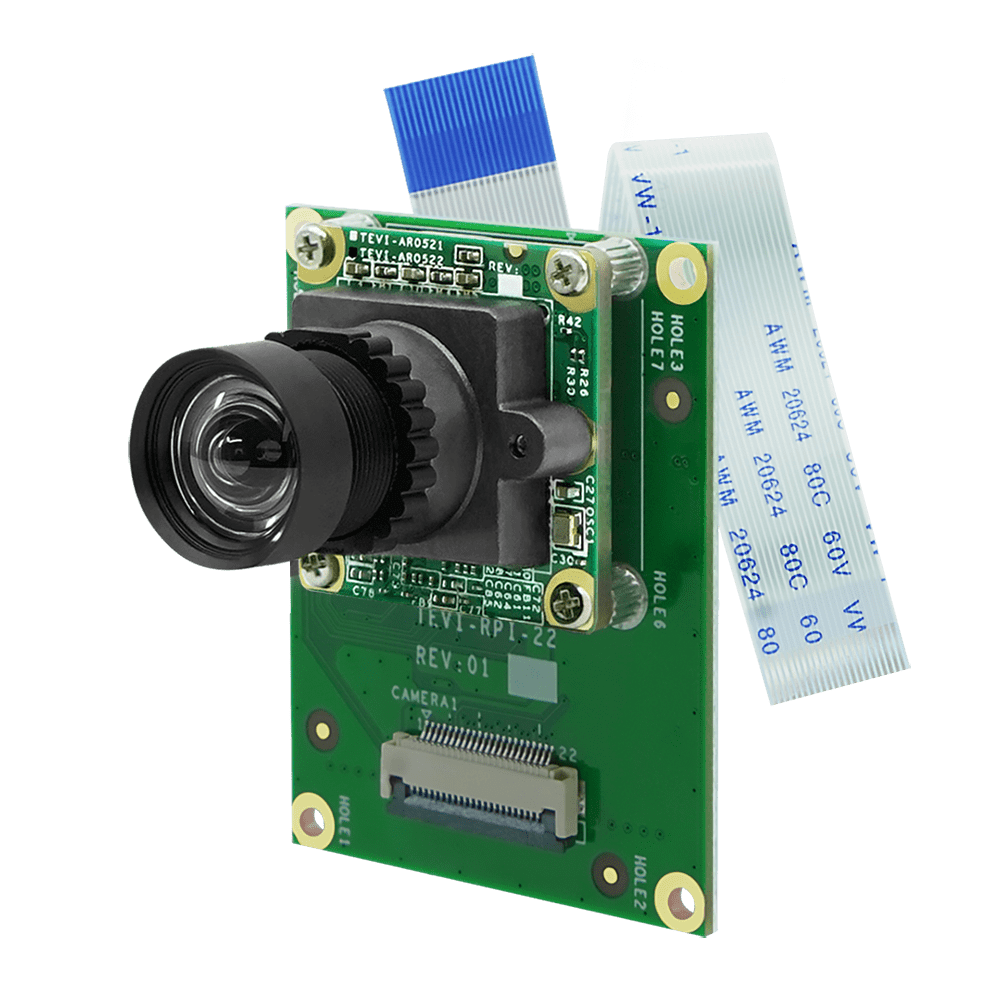

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB

TEVI-AR0522-C-S85-IR-NXP

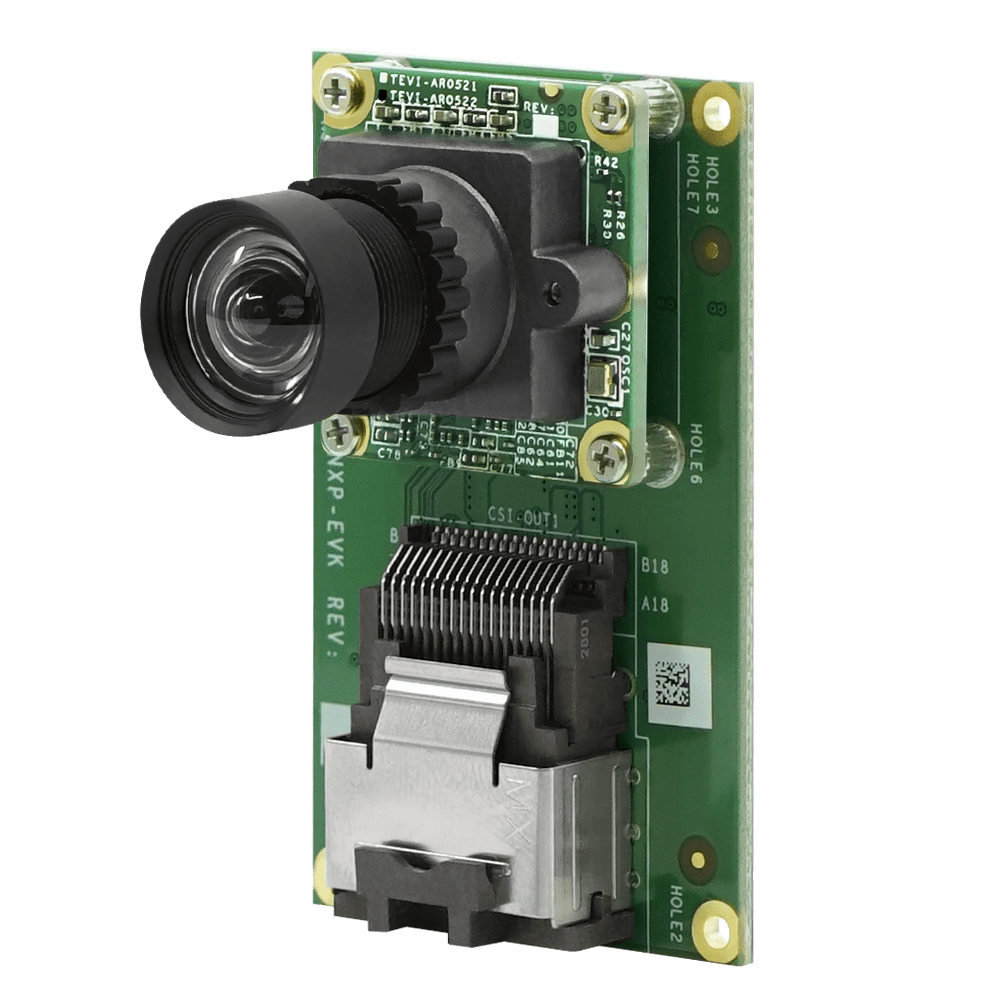

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

TEVI-AR0522-C-S85-IR-RPI22

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB

WB-EDM-G-IMX8M-MINI

TEVI-AR0522-C-S85-IR-EVK

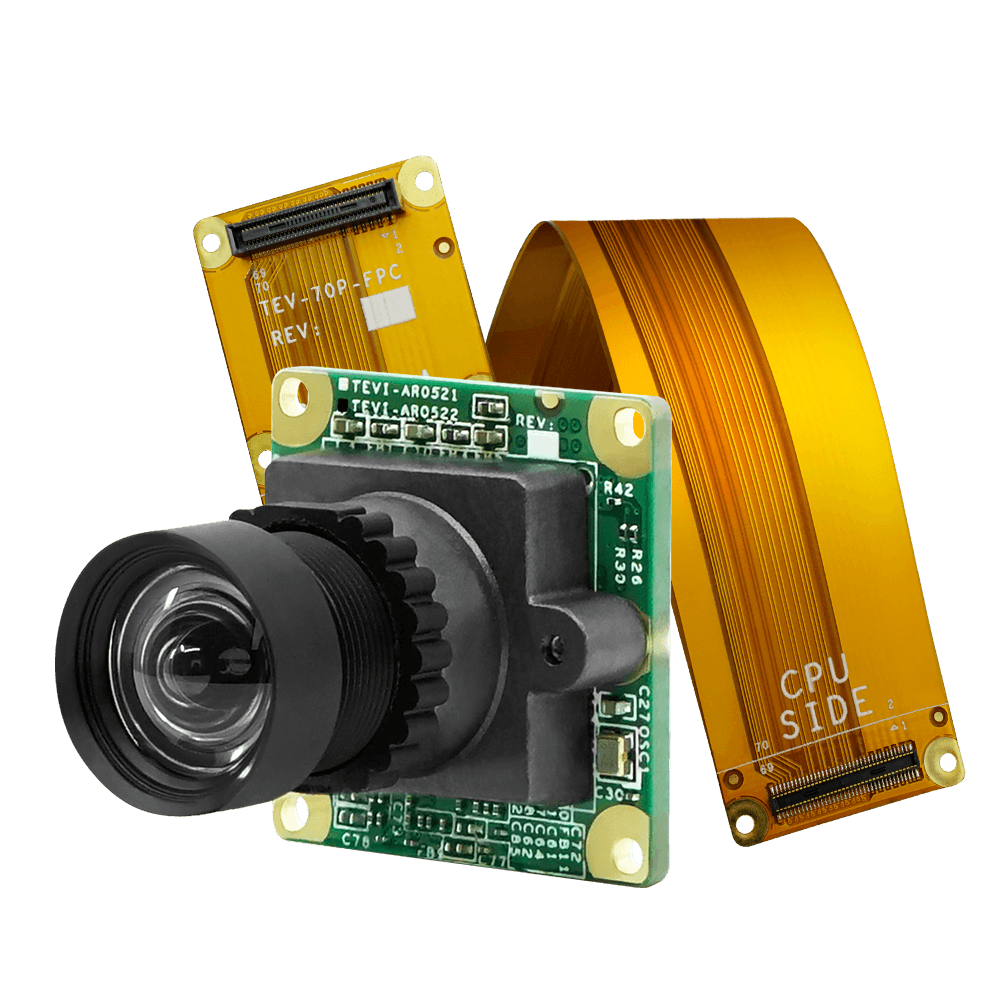

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + FPC Cable for Technexion SOM EVK
