TEVI-AR0521-C-S85-IR

SKU: TEVIAR0521CS85IR Category:

$80.00

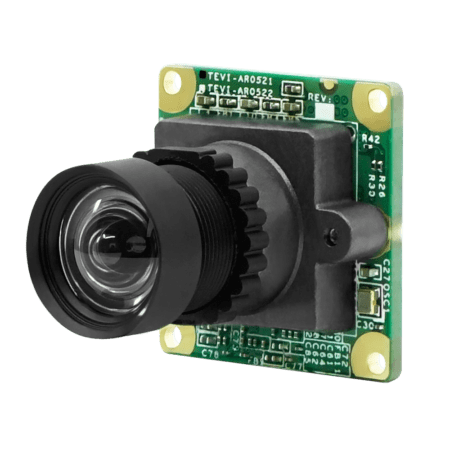

MIPI-CSI2 Sensor onsemi AR0521 5MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter

Out of stock

Specifications

Additional information

CMOS Sensor

onsemi AR0521

Active Pixels

2592 (H) x 1944 (V) = 5MP

Pixel Size

2.2 µm x 2.2 µm

Optical Format

1/2.5" (Diagonal 7.13mm)

Shutter Type

Rolling Shutter

Chromaticity

Color

Illuminated type

Back Side Illuminated (BSI)

Maximum Frame Rate (YUV422-UYVY)

2592 x 1944 @ 30 fps, 2560 x 1440 @ 40 fps, 1920 x 1080 @ 60 fps, 1280 x 960 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 60 fps

Maximum S/N Ratio

40 dB

Input Clock Range

48 MHz

Output Format

YUV422-UYVY

Module Data Transmission

MIPI CSI-2, up to 4 lanes

Communication Interface

I2C

Connector

70 Pin Standardized Connector

Supply Voltage

Analog: 2.8V, I/O: 1.8V, Digital: 1.15V & 3.3V

Operation Systems

Linux, Yocto, Android

Standby Power

≤ 32 mW Standby

Platform Support

NVIDIA Jetson Orin Nano / NX, NVIDIA Xavier NX, NVIDIA Jetson Nano, NXP i.MX93, NXP i.MX8M Nano / Mini / Plus, TI Sitara™ AM62 / AM62A / AM67, TI Jacinto™ TDA4VM / TDA4VH

SDK

VizionViewer™ / VizionSDK

Dimensions

24.5(W) x 24.5(H) x 12.7(D) mm

Weight

≤ 3 grams

Operation Temperature

-30°C to +70℃

Certification

Compliant with CE / FCC / RoHS / REACH directives

Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

Yes

Focus Type

Fixed Focus

Focal Length

3.9 mm

Aperture

F2.8

Lens D-FOV

96.0°

Lens H-FOV

80.0°

Lens V-FOV

60.0°

Module D-FOV

85.2° ± 5%

Module H-FOV

73.0° ± 5%

Module V-FOV

58.1° ± 5%

TTL

22 mm

BFL

4.54 mm

MOD

0.3 m

Distortion

< 1.26%

IR-Filter

650 nm

Lens Operating Temperature

-20°C to +60°C

Block Diagram

TEVI-AR0521C Block Diagram

Dimensions

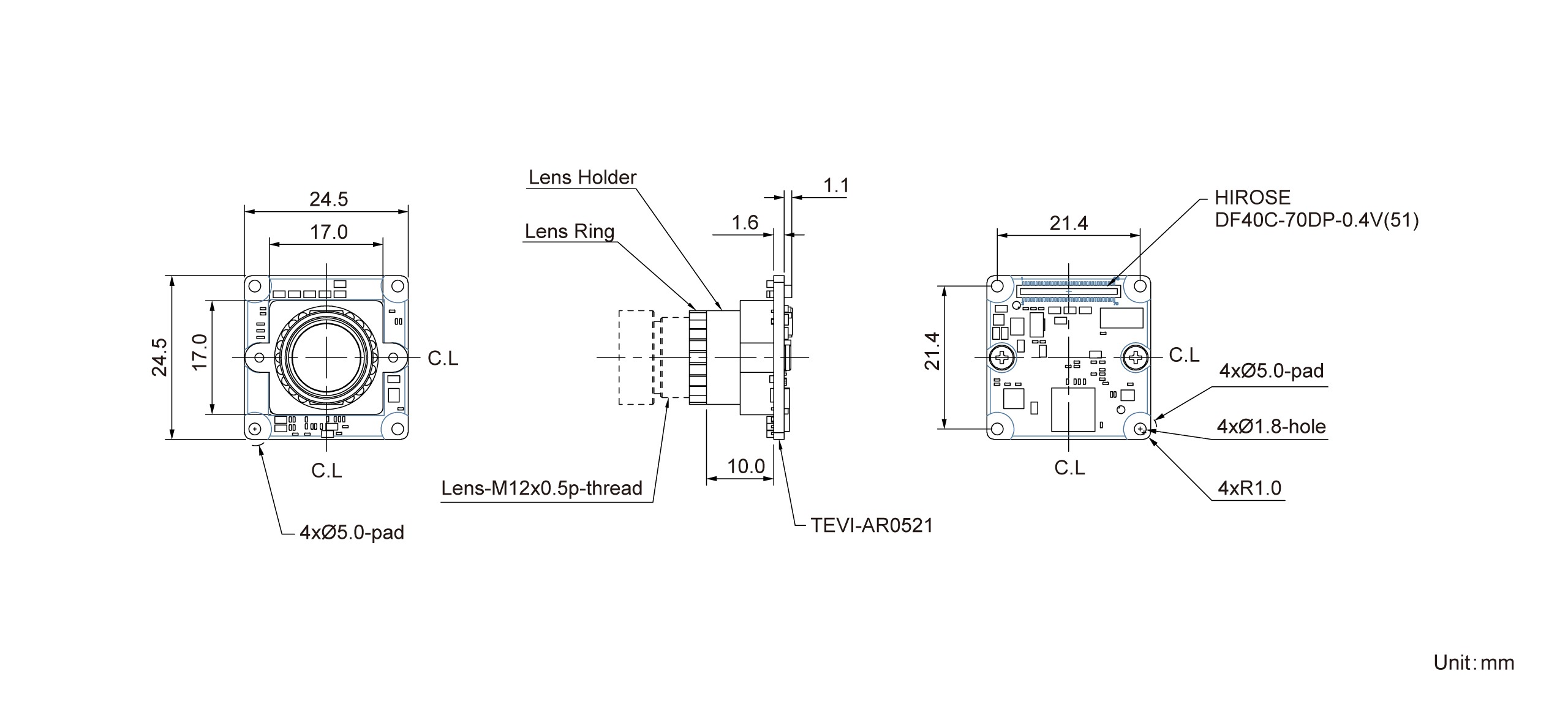

TEVI-AR0521-holder Dimension

Spectral Characteristics

AR0521 Spectral Characteristics

Switch Setting

AR0521 Switch
