TEVI-AR0822-C-S72-IR-RPI15

TEVI-AR0822-C-S72-IR-RPI15

SKU: TEVIAR0822CS72IRRPI15 Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + 72 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB

10 in stock (can be backordered)

Quantity	Discount (%)	Price
1 - 99	—	$157.00
100 - 249	5 %	$149.15
250 - 499	10 %	$141.30
500+	15 %	$133.45

x

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Optical Format	1/2” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (UYVY)	3840 x 2160 @ 22 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Maximum S/N Ratio	40.5 dB
HDR Support	Yes
Input Clock Range	48 MHz
Output Format	UYVY

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	15 Pin Standardized ZIF Connector

Power Specifications

Supply Voltage	Digital: 3.3V Analog: 2.8V I/O: 1.8V
Power Consumption	3840 x 2160 @ 24 fps ≤ 1194 mW
Standby Power	≤ 52 mW Standby

Software Support

Platform Support	TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux
SDK	VizionViewer™ SDK

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 23.6(D) mm
Weight	≤ 18 grams
Operation Temperature	-30°C to +70℃

Lens Information

Focus Type	Fixed Focus
Focal Length	6 mm
Aperture	F2.8
Lens D-FOV	72.0°
Lens H-FOV	61.0°
Lens V-FOV	47.0°
Module D-FOV	72.0° ± 5%
Module H-FOV	64.7° ± 5%
Module V-FOV	39.0° ± 5%
TTL	28.6 mm
BFL	8.8 mm
MOD	0.1 m
Distortion	<0.5%
IR-Filter	650 nm
Lens Operating Temperature	-10°C to +50°C

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

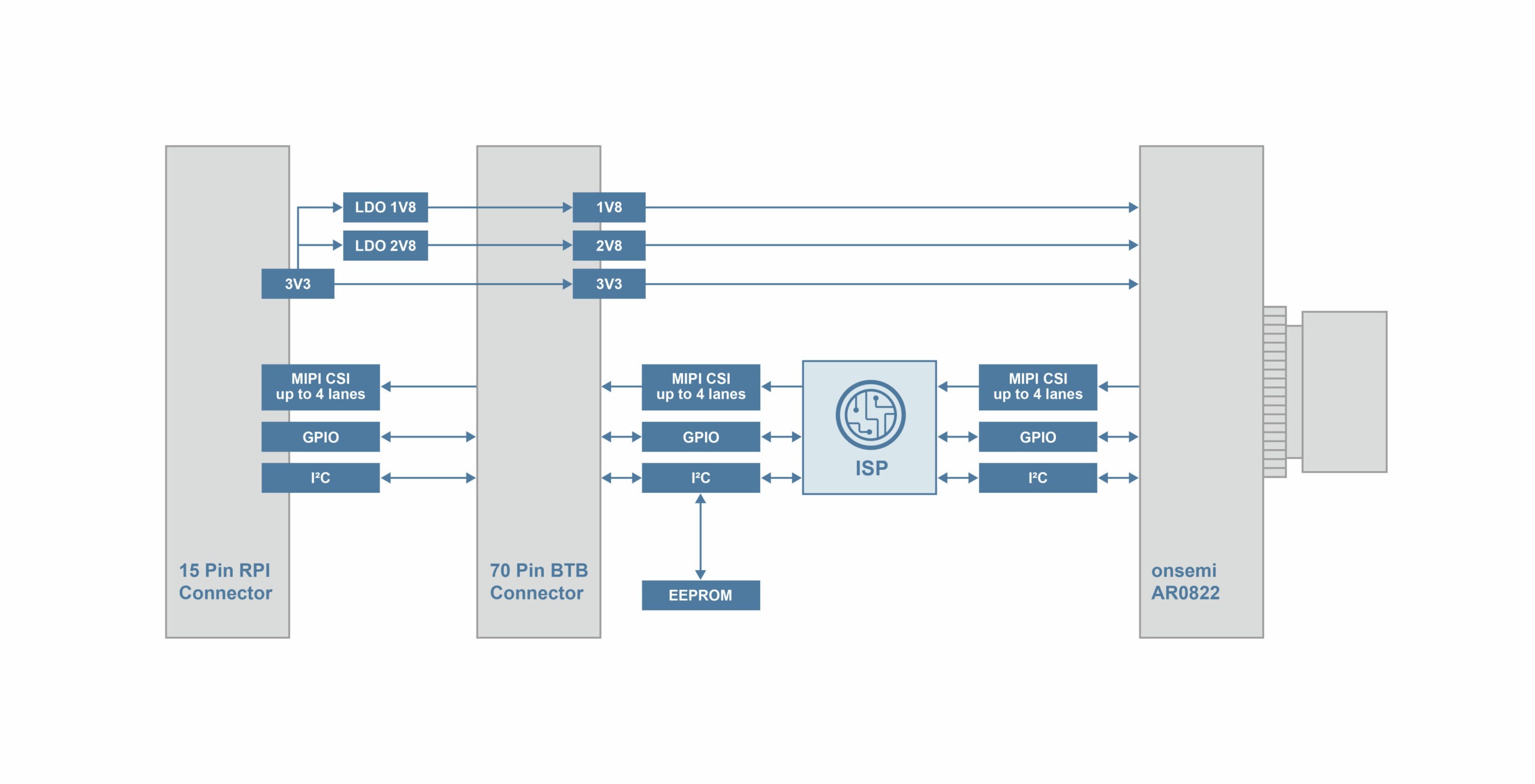

TEVI-AR0822-RPI Block Diagram

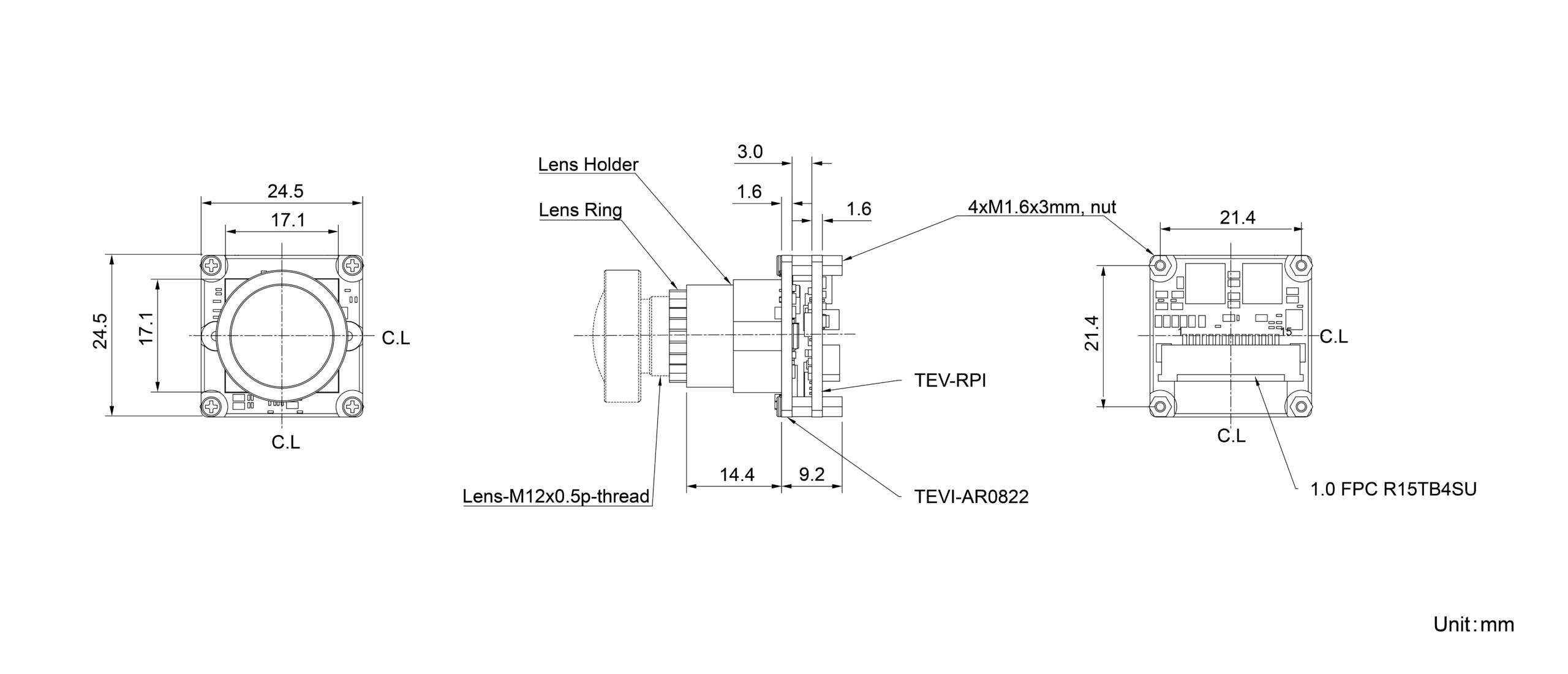

TEVI-AR0822-RPI Dimension

AR0822 Spectral Characteristics

AR0822 Switch
