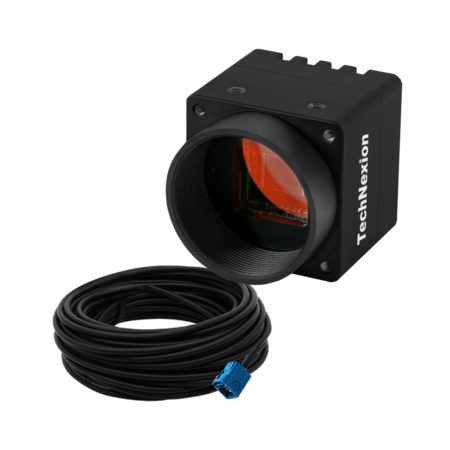

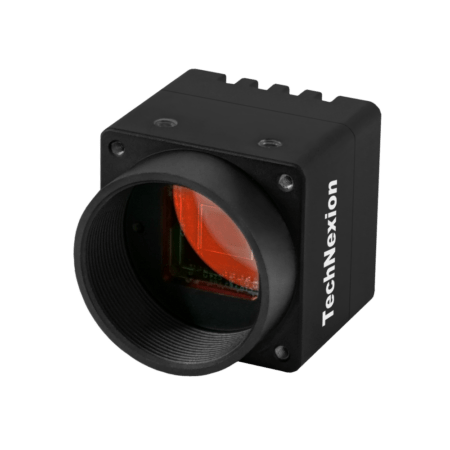

FPDLINK-III IP68 Camera with onsemi AR0144 1MP Color Global Shutter with ISP + IR-Cut Filter with C Mount Body
Your camera VLI-AR0144-C-CB-IR is selected by default.
Your camera is connected with a COAX cable with FAKRA Interconnects.
You can choose one of the following length cables for your camera.
Your camera comes with a C-Mount option and will require an additional lens. You can purchase your own lens or select a TechNexion lens below.
Want to mount your camera on an A-Mount stand with our bracket?
1280 (H) x 800 (V) = 1MP
3.0 μm x 3.0 μm
1/4” (Diagonal 4.5 mm)
Front Side Illuminated (FSI)
1280 x 800 @ 60 fps1280 x 720 @ 60 fps640 x 480 @ 60 fps
FAKRA SMB Jack Z-Code
12V ± 5%
UYVY 1280 x 800 @ 60 fps ≤ 0.9W
≤ 0.1W Standby
x86 Intel / AMDNXP i.MX8M Mini / PlusNXP i.MX93TI Sitara™ AM62x / AM62ATI Jacinto™ TDA4VM / TDA4VA / TDA4VHNVIDIA Jetson NanoNVIDIA Xavier NXNVIDIA Orin Nano/NX
29.5(W) x 29.5(H) x 37.5(D) mm
10 to 90 %
15G half-sine 11 ms duration
-30°C to +70℃
1 Grms random 5-500Hz hr/axis
Compliant with CE / FCC / RoHS / REACH directives
Vizionlink COAX 1 Wire connection cable 10 meters for Vizionlink FPD-Link III Camera's
Vizionlink COAX 1 Wire connection cable 100cm for Vizionlink FPD-Link III Camera's
Vizionlink COAX 1 Wire connection cable 3 meters for Vizionlink FPD-Link III Camera's
Vizionlink COAX 1 Wire connection cable 5 meters for Vizionlink FPD-Link III Camera's
