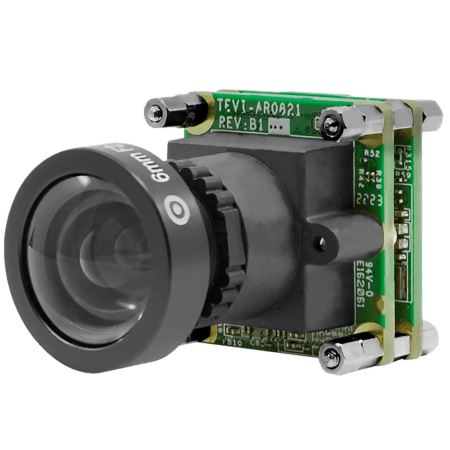

UVLI-AR0821-SL Front side

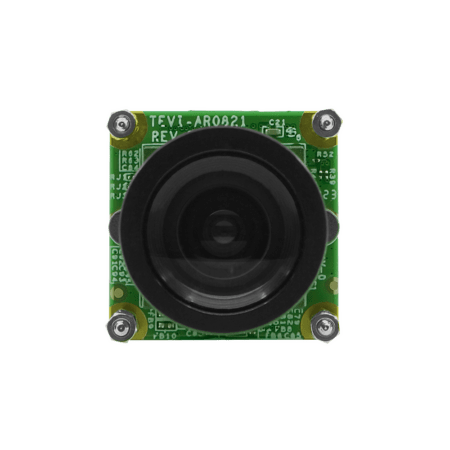

UVLI-AR0821-SL Ftont

UVLI-AR0821-SL Back

UVLI-AR0821-C-S74-IR

SKU: UVLIAR0821CS74IR Category: FPD-Link III Cameras

More Information

Product Brief

FPDLINK-III PCB Board Camera with onsemi AR0821 8MP 4K Rolling Shutter with Onboard ISP + 74 Degree M12 Lens with IR-Cut Filter

Additional information

Camera Information

CMOS Sensor	onsemi AR0821
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.1 μm x 2.1 μm
Optical Format	1/2” (Diagonal 9.25 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (UYVY)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Maximum S/N Ratio	41.8 dB
HDR Support	Yes
Output Format	UYVY

Interface

Connector	FAKRA SMB Jack Z-Code
Serial Link	FPD-Link III

Power Specifications

Supply Voltage	12V ± 5%
Power Consumption	UYVY 3840 x 2160 @ 15 fps ≤ 1.6W
Standby Power	≤ 0.1W Standby

Software Support

Platform Support	x86 Intel / AMD NXP i.MX8M Mini / Plus NXP i.MX93 TI Sitara™ AM62x / AM62A TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux Yocto
SDK	VizionViewer™ SDK

Lens Information

Aperture	F2.8
BFL	8.8 mm
Distortion	< 0.5%
Focal Length	6 mm
Focus Type	Fixed Focus
IR-Filter	650 nm
Lens D-FOV	72.0°
Lens H-FOV	61.0°
Lens Operating Temperature	-10°C to +50°C
Lens V-FOV	47.0°
MOD	0.1 m
Module D-FOV	74.4° ± 5%
Module H-FOV	67.1° ± 5%
Module V-FOV	40.8° ± 5%
TTL	28.6 mm

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 34.4(D) mm
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	-30°C to +70℃
Vibration	1 Grms random 5-500Hz hr/axis
Weight	25 grams

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

UVLI-AR0821 Block Diagram

UVLI-AR0821 Dimension

AR0821 Spectral Characteristics
