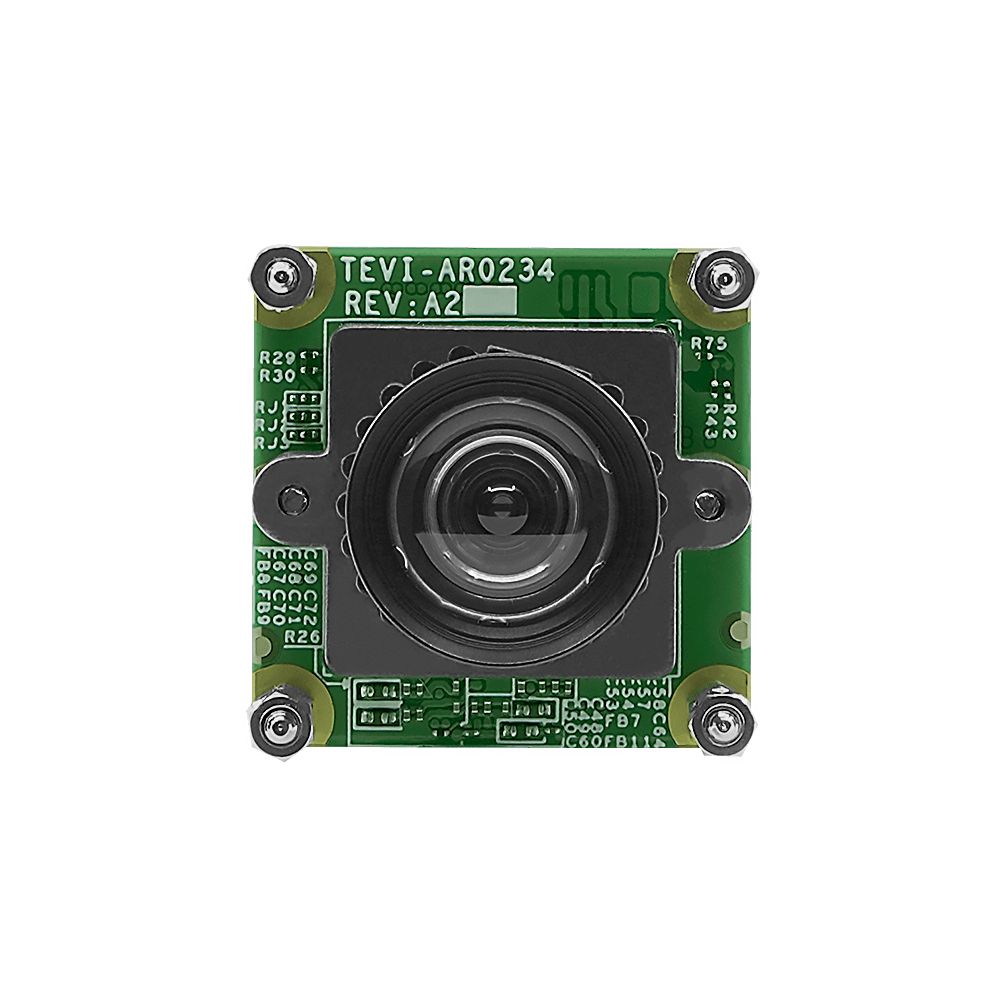

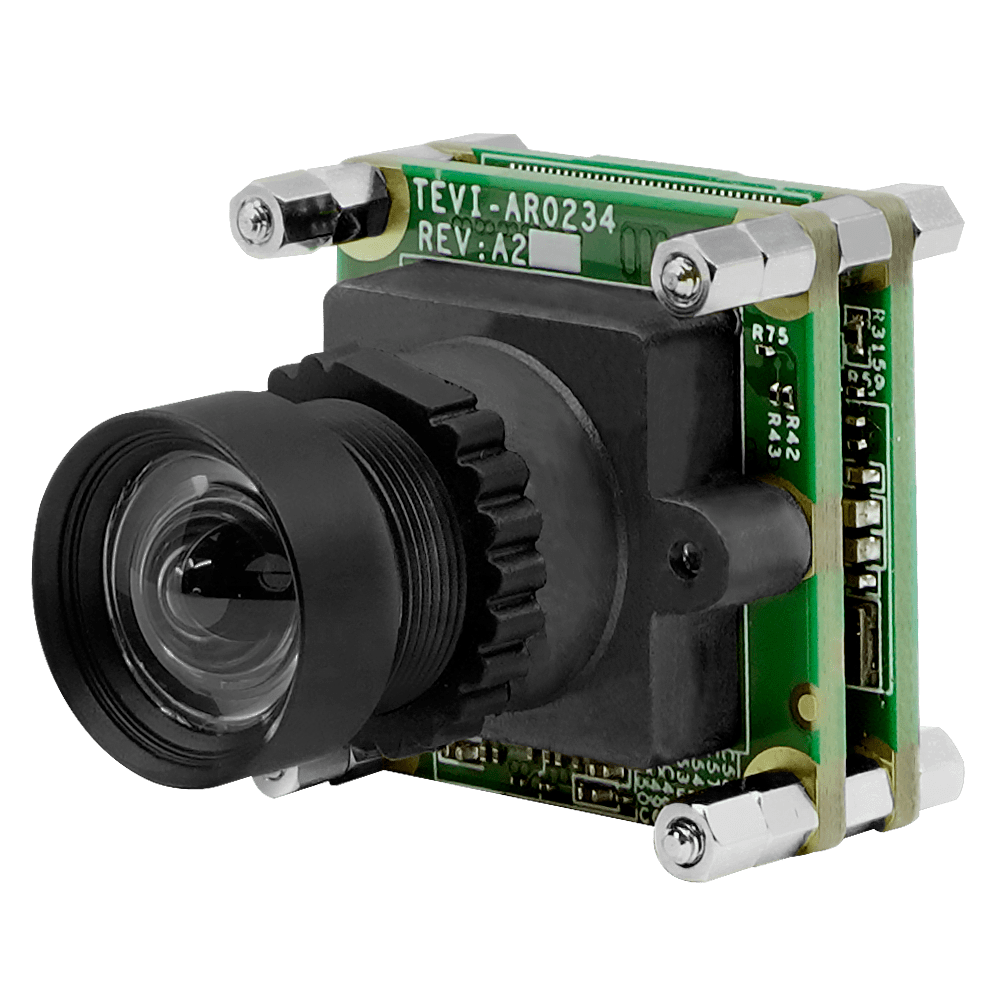

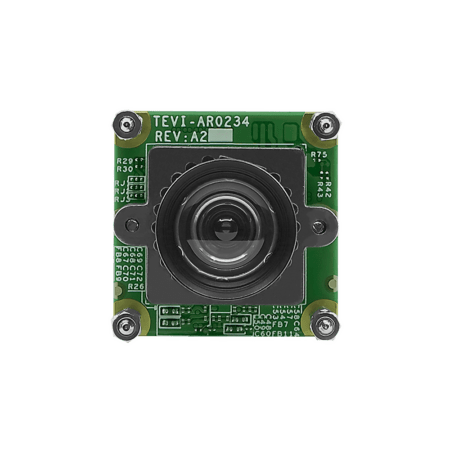

FPDLINK-III PCB Board Camera with onsemi AR0234 2MP Full-HD Color Global Shutter with Onboard ISP + 83 Degree M12 Lens with IR-Cut Filter
Your camera UVLI-AR0234-C-S83-IR is selected by default.
Your camera is connected with a COAX cable with FAKRA Interconnects.
You can choose one of the following length cables for your camera.
Want to mount your camera on an A-Mount stand with our bracket?
1920 (H) x 1200 (V) = 2.3MP
3.0 μm x 3.0 μm
1/2.6” (Diagonal 6.8 mm)
Front Side Illuminated (FSI)
1920 x 1200 @ 60 fps1920 x 1080 @ 60 fps1280 x 720 @ 120 fps640 x 480 @ 120 fps
FAKRA SMB Jack Z-Code
12V ± 5%
UYVY 1920 x 1200 @ 60 fps ≤ 1.25W
≤ 0.1W Standby
x86 Intel / AMDNXP i.MX8M Mini / PlusNXP i.MX93TI Sitara™ AM62x / AM62ATI Jacinto™ TDA4VM / TDA4VA / TDA4VHNVIDIA Jetson NanoNVIDIA Xavier NXNVIDIA Orin Nano/NX
-20°C to +60°C
82.8° ± 5%
73.4° ± 5%
50.1° ± 5%
24.5(W) x 24.5(H) x 30.0(D) mm
10 to 90 %
15G half-sine 11 ms duration
-30°C to +70℃
1 Grms random 5-500Hz hr/axis
Compliant with CE / FCC / RoHS / REACH directives
