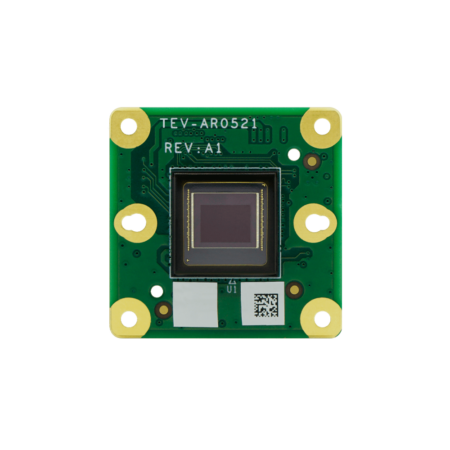

TEV-AR0521 TOP

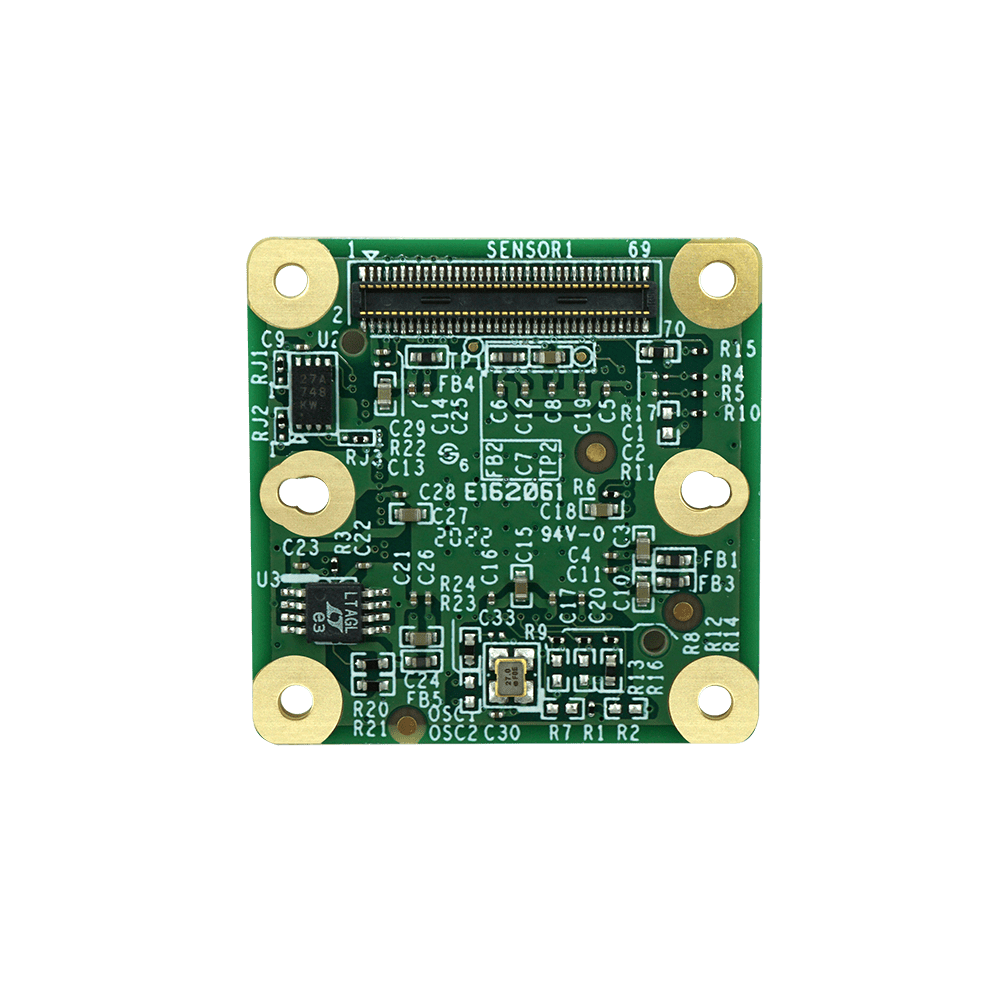

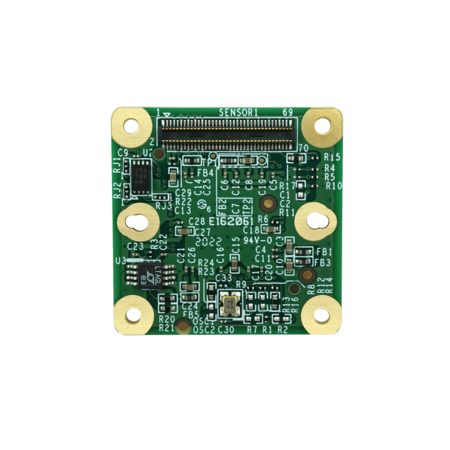

TEV-AR0521 BACK

TEV-AR0521

SKU: TEVAR0521 Category: Camera Sensors

5MP Rolling shutter

low luminance capture

Available on backorder

Quantity	Price
1 - 999	$40.43
1,000+	$37.98

x

Additional information

Sensor Information

CMOS Sensor	Onsemi AR0521
Active Pixels	2592 (H) x 1944 (V)
Pixel Size	2.2µm x 2.2µm
Optical Format	1/2.5" (Diagonal 7.13mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono / Color
Maximum Frame Rate	5MP @ 60 FPS
Chief Ray Angle	9°
Input Clock Range	10 – 48 MHz
Bit Depths	8 / 10 / 12 bit

Environmental and Mechanical

Dimensions	26.5 x 26.5 mm
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	Industrial: -30° to +85° C
Vibration	1 Grms random 5-500Hz hr/axis
Weight	5 grams

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	YES

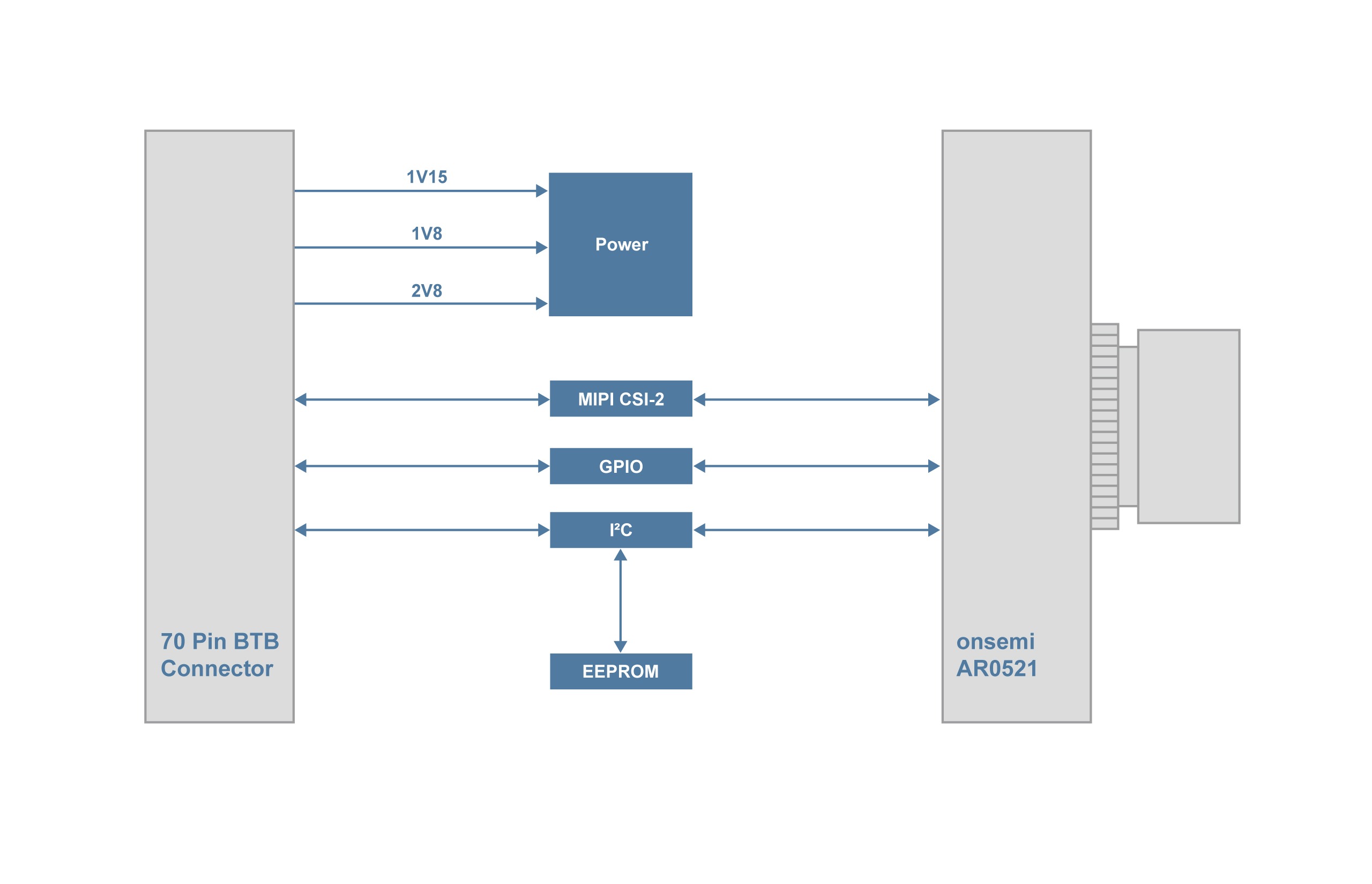

TEV-AR0521 Block Diagram

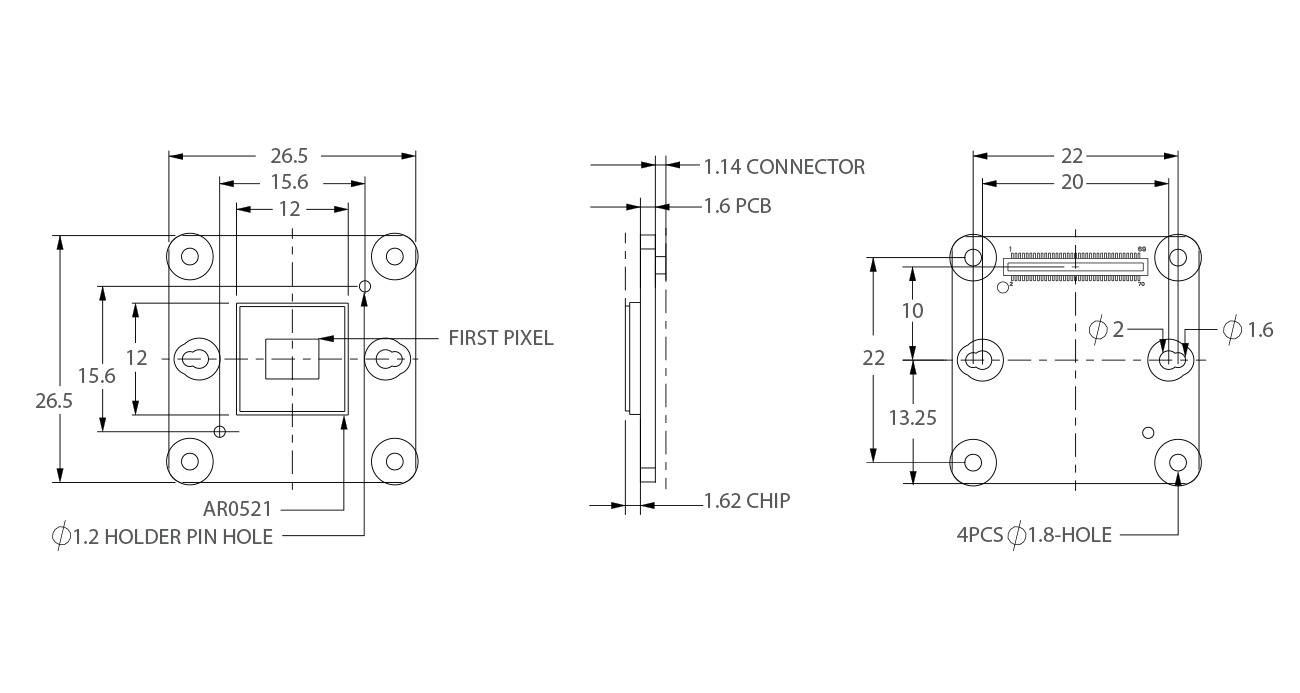

TEV-AR0521 Dimensions
