TEVI-OV5640-S84-IR-EVK

TEVI-OV5640C-S84-IR-EVK

SKU: TEVIOV5640CS84IREVK Category:
More Information
Product Brief

OmniVision OV5640 5MP rolling shutter with ISP MIPI-CSI2 camera module + 84 degree S-mount lens with IR-cut filter + FPC connection cable for TechNexion SOM EVK

85 in stock (can be backordered)

Quantity Discount (%) Price
1 - 49 — $65.00
50 - 99 5 % $61.75
100+ 10 % $58.50
x

Additional information

Sensor Information
CMOS Sensor

Omnivision OV5640

Active Pixels

2592 (H) x 1944 (V)

Pixel Size

1.4 μm x 1.4 μm

Optical Format

1/4"

Shutter Type

Rolling Shutter

Chromaticity

Color

Maximum Frame Rate

1080p: 30 fps
1280×960: 45 fps
720p: 60 fps
QSXGA (2592×1944): 15 fps
QVGA (320×240): 120 fps
VGA (640×480): 90 fps

Chief Ray Angle

24°

Input Clock Range

6 – 27 MHz

Bit Depths

8 / 10 bit
Interface
Communication Interface

I2C
MIPI-CSI2 (2 Lane)

Connector

70 Pin Standardized Camera Connector
Platform Support
Platform Support

NXP i.MX8M Plus
NXP i.MX8M Mini
ISP
ISP Functions

Automatic 50/60 Hz Luminance Detection
Automatic Band Filter (ABF)
Automatic Black Level Calibration
Auto Exposure
Auto Gain
Auto White Balance
Color Calibration
Gamma
Lens Correction
Environmental and Mechanical
Dimensions

24.5 x 24.5 x 12.74 mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

-30° ~ 70℃

Vibration

1 Grms random 5-500Hz hr/axis

Weight

≤ 12 grams
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

YES

TEVI-OV5640C Block Diagram

TEVI-OV5640C-S84-IR-EVK Dimension

OV5640 Spectral Characteristics

OV5640 Switch

You may be interested in…

TEVI-AR0144C-S84-IR-RPI

onsemi AR0144 1MP global shutter with ISP MIPI-CSI2 camera module + 84 degree S-mount lens with IR-cut filter + RPI 15 pin converter and Flex PCB

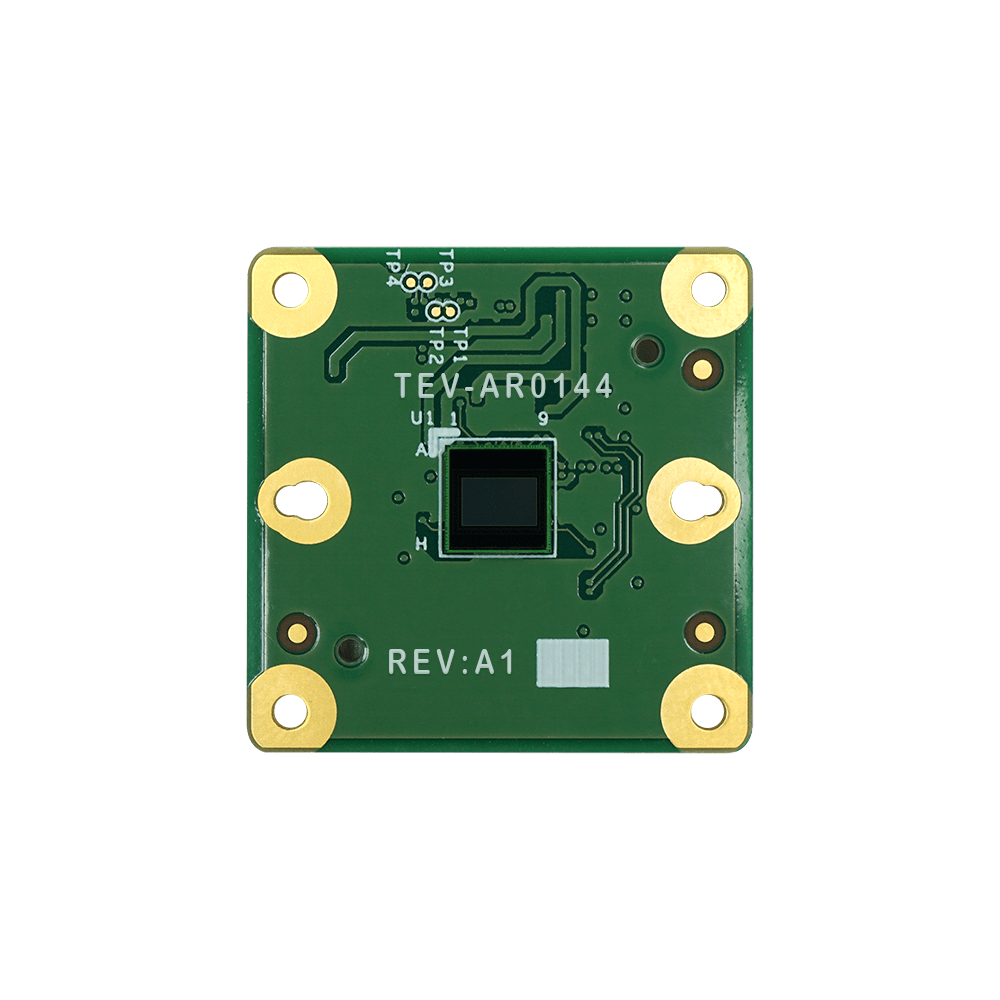

TEV-AR0144
