TEVI-AR0522-S96-IR-EVK

TEVI-AR0522C-S96-IR-EVK

SKU: TEVIAR0522CS96IREVK Category:
More Information
Product Brief

onsemi AR0522 5MP rolling shutter with ISP MIPI-CSI2 camera module + 96 degree S-mount lens with IR-cut filter + FPC connection cable for TechNexion SOM EVK

Available on backorder

Quantity Discount (%) Price
1 - 49 — $90.00
50 - 99 5 % $85.50
100+ 10 % $81.00
x

Additional information

Sensor Information
CMOS Sensor

Onsemi AR0522

Active Pixels

2592 (H) x 1944 (V)

Pixel Size

2.2µm x 2.2µm

Optical Format

1/2.5" (Diagonal 7.13mm)

Shutter Type

Rolling Shutter

Chromaticity

Color

Maximum Frame Rate

1440p/10 bit: 60 fps
1440p/10 bit/Interleaved HDR: 30 fps
1440p/12 bit: 50 fps
1440p/12 bit/Interleaved HDR: 25 fps
5Mp/10 bit: 60 fps
5Mp/10 bit/Interleaved HDR: 30 fps
5Mp/12 bit: 32 fps
5Mp/12 bit/Interleaved HDR: 16 fps

Chief Ray Angle

9°

Input Clock Range

10 – 48 MHz

Bit Depths

8 / 10 / 12 bit
Interface
Communication Interface

I2C
MIPI-CSI2 (4 Lane)

Connector

70 Pin Standardized Camera Connector
Platform Support
Platform Support

NXP i.MX8M Plus
NXP i.MX8M Mini
ISP
ISP Functions

Auto White Balance (Color Mode)
Auto Exposure
Auto Gain
Color Calibration
Gamma
Lens Correction
Environmental and Mechanical
Dimensions

24.5 x 24.5 x 17.14 mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -30° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

≤ 12 grams
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

YES

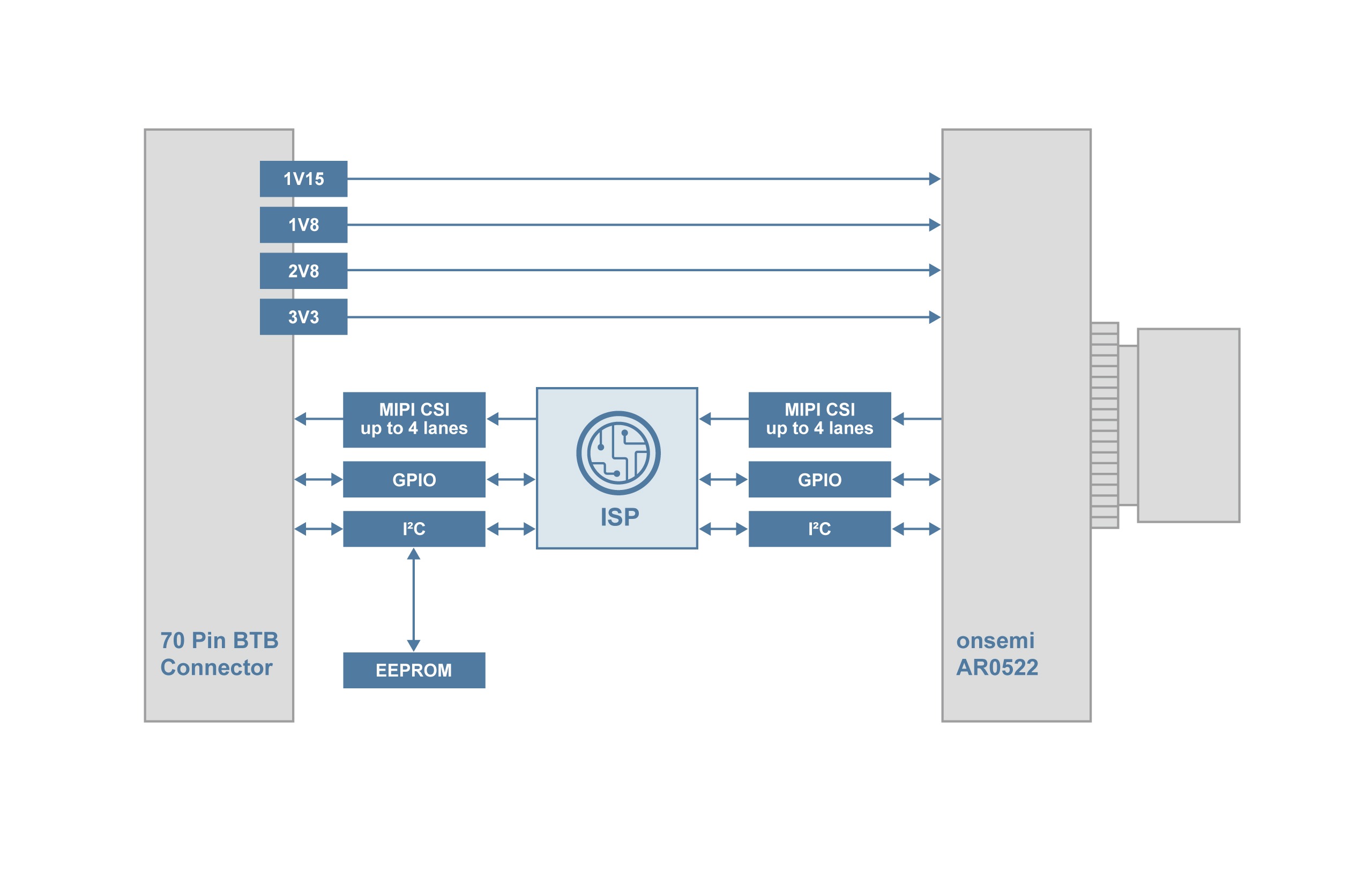

TEVI-AR0522C-S96-IR-EVK Block Diagram

TEVI-AR0522C-S96-IR-EVK Dimension

AR0522 Spectral Characteristics

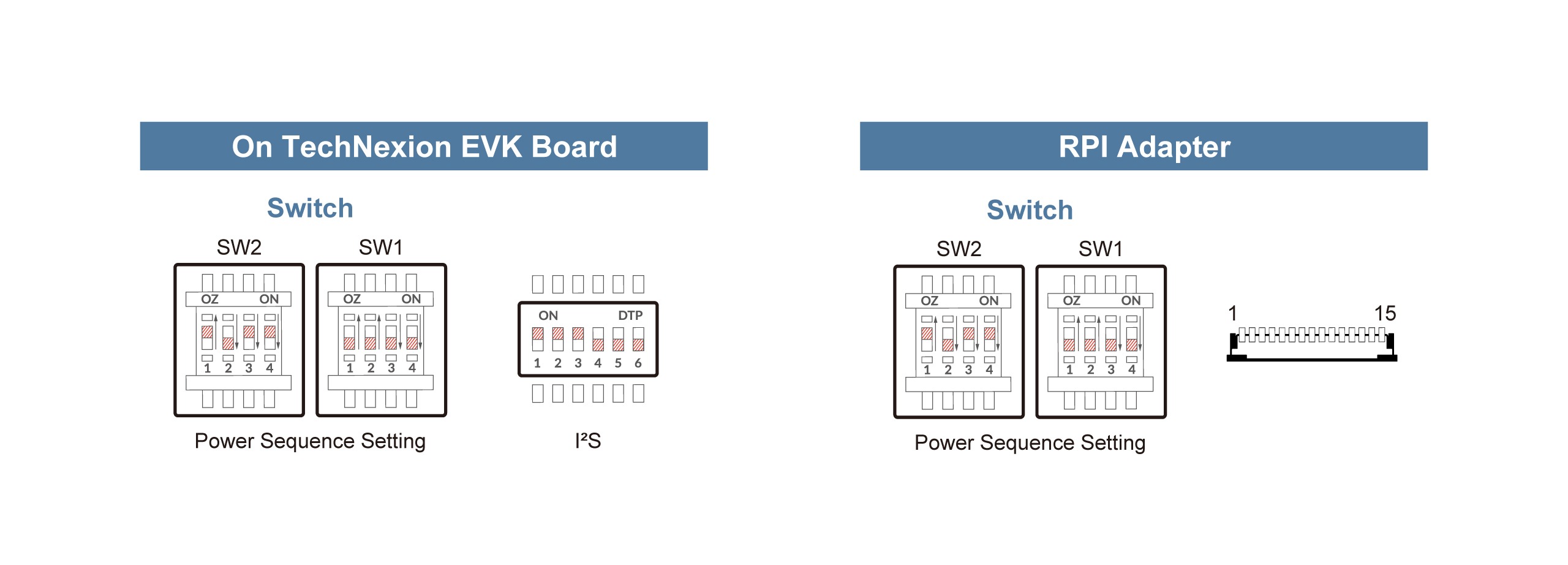

AR0522 Switch
