FLEX-IMX8M-MINI

  • Modern System on Module form factor
  • Up to four Cortex-A53 1.8 GHz processors
  • NXP i.MX 8M Mini applications processor
  • Armv8 64-Bit CPU cores

Order this product
FLEX-IMX8M-MINI-9377 TOP
FLEX-IMX8M-MINI BACK

Highlights

Performance

The NXP i.MX8M mini low-power 64-bit Arm Cortex-A53 brings a Full-HD multimedia user experience for ubiquitous IIOT and Edge applications.

Certified Connectivity

Simplify your design with pre-certified wireless options — from the module to the antennas — to make end-device certification processes more predictable while cutting costs.

Rugged and Reliable

Our System-on-Modules are available in industrial grade configurations to withstand the worst environmental challenges your embedded product might face.

Interfaces

Packed with a wide array of interfaces Our System-on-Modules are as a Swiss Army knife with a wide array of interfaces ranging from GPIO, PWM to I²C, SPI, UART and USB

Camera Integration

Machine Vision camera modules and complete off-the-shelf solutions available from TechNexion. Seamless integration and optimized from the first day of your project.

Power-optimized

One of the best choices when designing an embedded device when power and performance are in a stand-off and choosing sides is not an option. Take advantage of 64-bit processing power at minimum power usage requirements

Software Platform

As a true opensource software advocate. TechNexion products are supported with a sourcecode BSP Linux and Android AOSP. Third party consultants can tailor solutions easily to make every embedded project a success.

Core System
Processor

NXP i.MX8M Mini

Architecture

ARM Cortex-A53 + M4

AI / ML

OpenCL CPU: 32 GOPS

PMIC

ROHM BD71847

Memory

Upto 4GB LPDDR4

Storage

16GB eMMC (default)

Board-to-Board Connector

260-pin DDR4 SO-DIMM

System on Module

FLEX SOM

Debug Interface

JTAG Interface by Through-hole

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna

MHF4 connector (optional)

Signaling
I/O

LAN
MIPI CSI
MIPI DSI
PCIe
USB
USB OTG
I²S
SDIO
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

Vivante GC Nano Ultra

Video decode

1080p60 H.264

Video encode

1080p60 H.264

Camera

MIPI CSI (4 lanes)

Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical
Dimensions

69.6 x 35mm

Form Factor

FLEX

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C
Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

8 grams

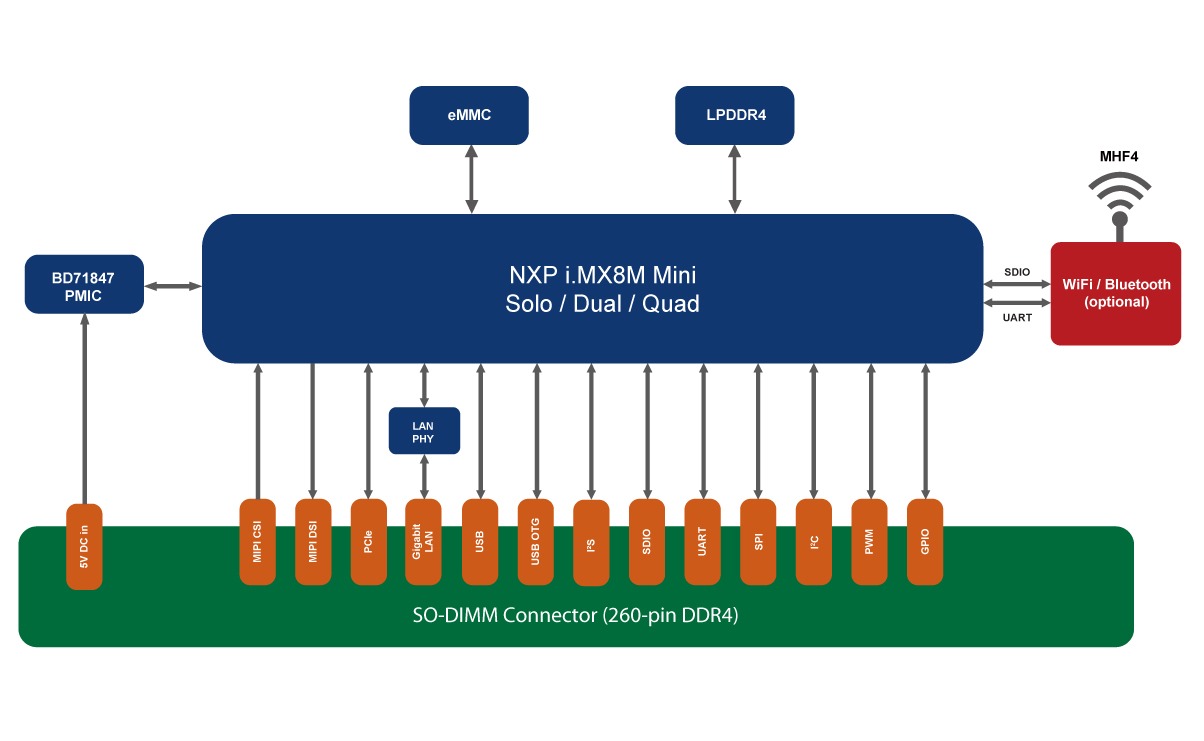

FLEX-IMX8M-MINI Block Diagram

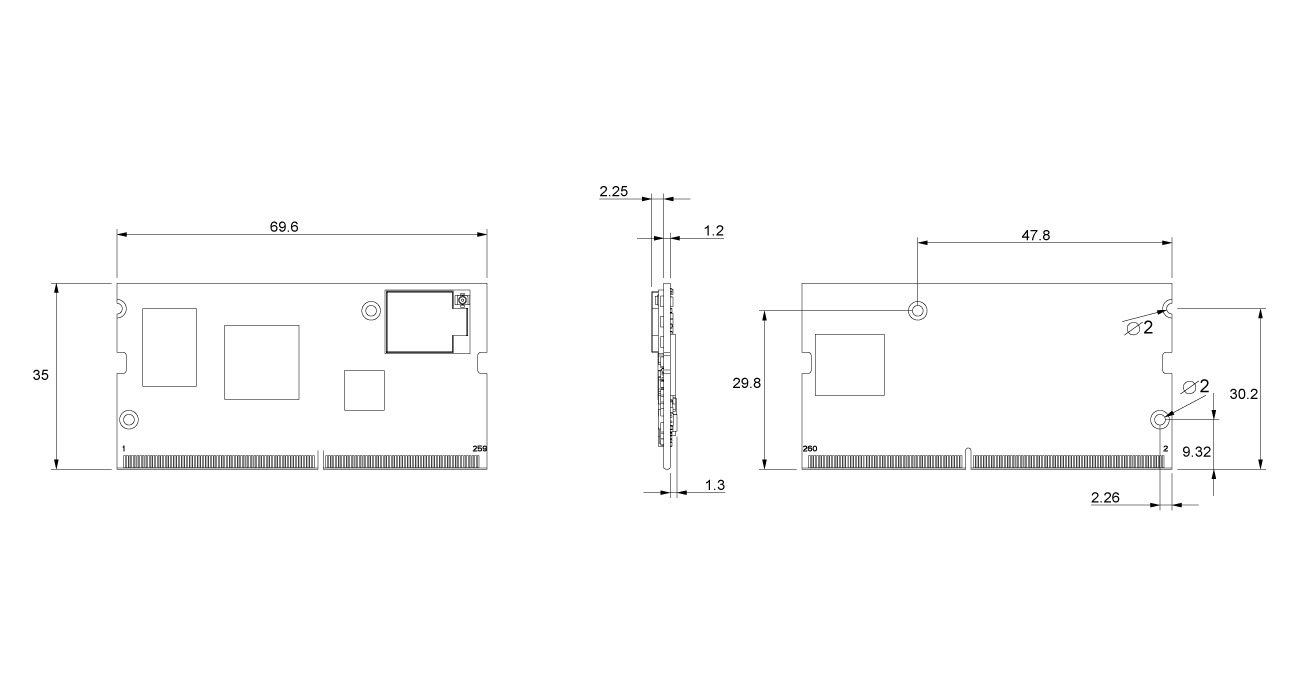

FLEX-IMX8M-MINI Dimensions
Order Information Example:

FLEX-IMX8MMQ-xx-Rxx-Exx-xxxx-xx

 CodeDescription
ProcessorIMX8MMQNXP i.MX8M Mini Quad Core
Processor Speed161.6Ghz
181.8Ghz
MemoryR101GB LPDDR4
R202GB LPDDR4
R404GB LPDDR4
Storage E1616GB eMMC
Bluetooth / WiFi--
93771x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac + Bluetooth
Temperature Range -Commercial Temperature range (0~60° C)(Default)
TIIndustrial Temperature range (-40~85° C)



Standard Parts

FLEX-IMX8MMQ-18-R10-E16

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 1GB RAM + 16GB EMMC

FLEX-IMX8MMQ-18-R10-E16-9377

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 1GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH

FLEX-IMX8MMQ-18-R20-E16

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 2GB RAM + 16GB EMMC

FLEX-IMX8MMQ-18-R20-E16-9377

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 2GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH

FLEX-IMX8MMQ-18-R40-E16

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 4GB RAM + 16GB EMMC

FLEX-IMX8MMQ-18-R40-E16-9377

FLEX SOM NXP I.MX8M Mini QUAD 1.8GHZ + 4GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH

FLEX-IMX8MMQ-16-R10-E16-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 1GB RAM + 16GB EMMC INDUSTRIAL TEMP -40~85C

FLEX-IMX8MMQ-16-R10-E16-9377-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 1GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

FLEX-IMX8MMQ-16-R20-E16-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 2GB RAM + 16GB EMMC INDUSTRIAL TEMP -40~85C

FLEX-IMX8MMQ-16-R20-E16-9377-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 2GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

FLEX-IMX8MMQ-16-R40-E16-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 4GB RAM + 16GB EMMC INDUSTRIAL TEMP -40~85C

FLEX-IMX8MMQ-16-R40-E16-9377-TI

FLEX SOM NXP I.MX8M Mini QUAD 1.6GHZ + 4GB RAM + 16GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C
