TEVI-OV5640

  • OmniVision OV5640 5MP rolling shutter image sensor with ISP for advanced vision embedded applications.
  • Convenient S-Mount (M12) interchangeable lens.
  • Driver integration support for : • NXP i.MX8 / i.MX9 Family • Nvidia Jetson Nano / Xavier NX / Orin • TI Sitara™ AM62x / Jacinto™ TDA4 Family

Order this product
TEVI-OV5640 Medium FOV Right
TEVI-OV5640 Top

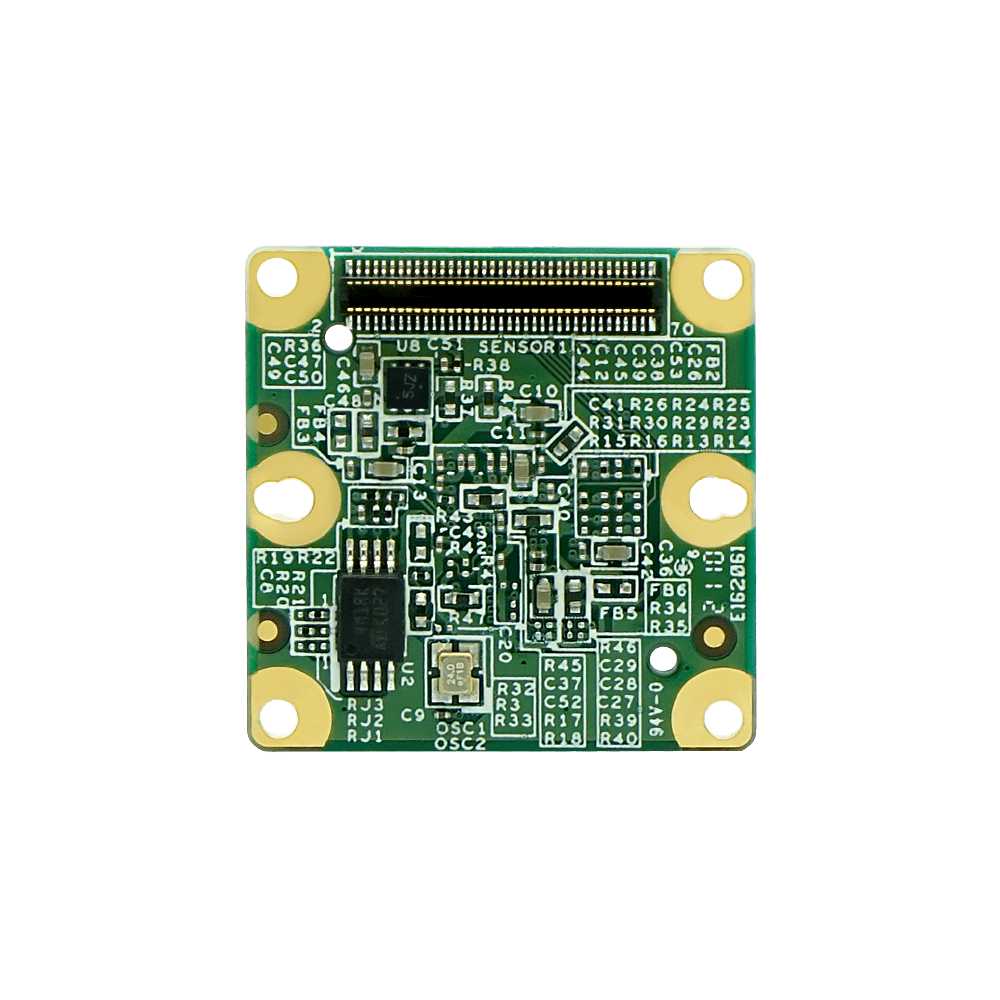

TEVI-OV5640 Back

TEVI-OV5640 Highlights

Evaluation Kits

Available to connect the camera module quickly to our System-on-Modules.

Rolling Shutter

Captures a high frame rate and low ambient noise image with a low-cost solution, suitable for static objects.

ISP

Color correction, Lens calibration, over-exposure management, and multiple functions are already taken care of with a built-in ISP.

Lens Adjustment

We provide lens calibration and correction adjustment.

MIPI Interface

Compatible with MIPI connector and easy to change among our camera modules to fit the project requirement.

Rugged and Reliable

Operates reliably in harsh industrial environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.

Software Platform

Supports various platforms, programming languages and easy to build on TN-Vizion SDK series.

Time to Market

With our pre-calibrated lens and integrated software, the camera can work directly and accelerate your time-to-market.

Specifications

Camera Information
CMOS Sensor

OmniVision OV5640

Active Pixels

2592 (H) x 1944 (V) = 5MP

Pixel Size

1.4 μm x 1.4 μm

Optical Format

1/4” (Diagonal 4.6 mm)

Shutter Type

Rolling Shutter

Chromaticity

Color

Illuminated type

Back Side Illuminated (BSI)

Maximum Frame Rate (UYVY)

2592 x 1944 @ 15 fps
1920 x 1080 @ 30 fps
1280 x 720 @ 60 fps
640 x 480 @ 30 fps

Maximum S/N Ratio

36 dB

Input Clock Range

48 MHz

Output Format

UYVY

Interface
Module Data Transmission

MIPI CSI-2, up to 2 lanes

Communication Interface

I2C

Connector

70 Pin Standardized Camera Connector

Power Specifications
Supply Voltage

Digital: 3.3V
Analog: 2.8V
I/O: 1.8V

Power Consumption

2592 x 1944 @ 15 fps ≤ 294 mW

Standby Power

≤ 18 mW Standby

Software Support
Platform Support

NXP i.MX8M Nano / Mini / Plus
NXP i.MX93
TI Sitara™ AM62x / AM62A
TI Jacinto™ TDA4VM / TDA4VA / TDA4VH
NVIDIA Jetson Nano
NVIDIA Xavier NX
NVIDIA Orin Nano/NX

Operation Systems

Linux
Yocto
Android

SDK

VizionViewer™ SDK

Environmental and Mechanical
Dimensions

24.5(W) x 24.5(H) x 3.45(D) mm

Weight

≤ 3 grams

Operation Temperature

-30°C to +70℃

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

TEVI-OV5640C Block Diagram

Dimension

TEVI-OV5640 Dimension

Spectral Characteristics

OV5640 Spectral Characteristics

Switch Setting

OV5640 Switch

Part Numbers

Order Information Example:

TEVI-OV5640-C-Sxx-xx-xxx

CodeDescription
Chromaticity CColor
Lens--
S84S-Mount Module D-FOV 84°
Filter--
IRIR Cut Filter 650nm
Evaluation Kit-70 pin Standardized Camera Connector
EVK70 pin Standardized Camera Connector with FPC cable
RPI1515 pin Standardized ZIF Connector with FFC cable
RPI2222 pin Standardized ZIF Connector with FFC cable
NXPMini-SAS connection cable for NXP Evaluation Board



Standard Parts
TEVI-OV5640 Top

TEVI-OV5640-C

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP

TEVI-OV5640 Medium FOV Right

TEVI-OV5640-C-S84-IR

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter

TEVI-OV5640-EVK Medium FOV

TEVI-OV5640-C-S84-IR-EVK

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter + FPC Cable for Technexion SOM EVK

TEVI-OV5640-RPI15 Medium FOV

TEVI-OV5640-C-S84-IR-RPI15

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB

TEVI-OV5640-RPI22 Medium FOV

TEVI-OV5640-C-S84-IR-RPI22

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB

TEVI-OV5640-NXP Medium FOV

TEVI-OV5640-C-S84-IR-NXP

MIPI-CSI2 Sensor OmniVision  OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK
