Category: FPD-Link III Cameras

TechNexion FPD-Link III Cameras are compliant to ISO 20860-1 & 2 and USCAR 18 standards, Fully IP68 waterproof and up-to 15 meter extension cables using FAKRA interconnects.

Combine TechNexion FPD-Link III with our embedded fanless systems to turn your embedded vision project into reality instantly.

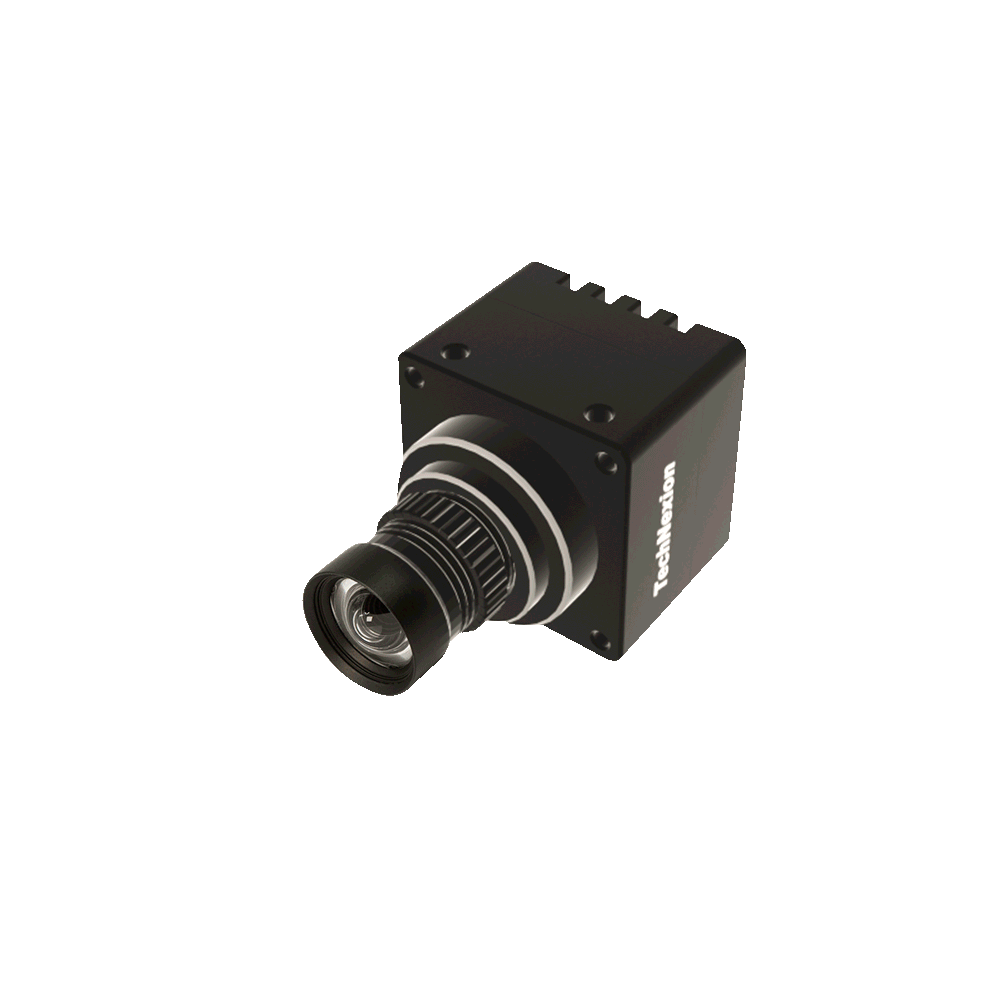

Vizionlink-Explosion-Drawing

TechNexion FPD-Link III cameras are supported with opensource Linux sourcecode for the following platforms

  • Nvidia Jetson NX
  • Nvidia Orin
  • NXP i.MX8 Family
  • TI Jacinto TDA4VM/VA/VH
  • Intel / AMD (x86 systems)

Every camera comes with VizionViewer SDK

Camera Sensor

Camera Resolution

Camera Shutter

Camera Lens

VLS3-AR0144-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0144 1MP Global Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0144-CB

  • onsemi AR0144 1MP Global Shutter Sensor
  • Captures high-speed dynamic targets clearly within an ultra-short exposure time.
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0144-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0144 1MP Global Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0144-SL

  • onsemi AR0144 1MP Global Shutter Sensor
  • Captures high-speed dynamic targets clearly within an ultra-short exposure time.
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0144-SL Medium FOV

FPDLINK-III PCB Board Camera with onsemi AR0144 1MP Global Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0144-SL

  • onsemi AR0144 1MP Global Shutter Sensor
  • Captures high-speed dynamic targets clearly within an ultra-short exposure time.
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0234-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0234 2MP Full-HD Global Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0234-CB

  • onsemi AR0234 2.3MP Global Shutter Sensor
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0234-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0234 2MP Full-HD Global Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0234-SL

  • onsemi AR0234 2.3MP Global Shutter Sensor
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0234-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR0234 2MP Full-HD Global Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0234-SL

  • 0234onsemi AR0234 2.3MP Global Shutter Sensor
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0521-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0521 5MP Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0521-CB

onsemi AR0521 5MP Rolling Shutter Sensor
  • Designed for Low Light Applications
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0521-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0521 5MP Rolling Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0521-SL

  • onsemi AR0521 5MP Rolling Shutter Sensor
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0521-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR0521 5MP Rolling Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0521-SL

  • onsemi AR0521 5MP Rolling Shutter Sensor
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0522-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0522 5MP Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0522-CB

  • onsemi AR0522 5MP Rolling Shutter Sensor
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0522-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0522 5MP Rolling Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0522-SL

  • onsemi AR0522 5MP Rolling Shutter Sensor
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • Convenient S-Mount (M12) interchangeable lens.
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0522-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR0522 5MP Rolling Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0522-SL

  • onsemi AR0522 5MP Rolling Shutter Sensor
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • Convenient S-Mount (M12) interchangeable lens.
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0821-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0821 8MP 4K Color Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0821-CB

  • onsemi AR0821 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Designed for Low Light Applications
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0821-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0821 8MP 4K Color Rolling Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0821-SL

  • onsemi AR0821 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0821-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR0821 8MP 4K Color Rolling Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0821-SL

  • onsemi AR0821 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0822-CB Kit

FPDLINK-III IP68 Camera with onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR0822-CB

  • onsemi AR0822 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR0822-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR0822-SL

  • onsemi AR0822 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR0822-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR0822 8MP 4K Rolling Shutter with Onboard ISP and S-mount Lens

UVLS3-AR0822-SL

  • onsemi AR0822 8MP Rolling Shutter Sensor
  • 4K HDR Imaging Capabilities
  • Near Infra-Red Enhancement for Outdoor Applications
  • Designed for Low Light Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR1335-CB Kit

FPDLINK-III IP68 Camera with onsemi AR1335 13MP Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

VLS3-AR1335-CB

  • onsemi AR1335 13MP Rolling Shutter Sensor
  • 4K HDR Imaging for Low-Cost Applications
  • C-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
VLS3-AR01335-SL Medium FOV Kit

FPDLINK-III IP68 Camera with onsemi AR1335 13MP Rolling Shutter with ISP + S-mount Lens with IR-Cut Filter

VLS3-AR1335-SL

  • onsemi AR1335 13MP Rolling Shutter Sensor
  • 4K HDR Imaging for Low-Cost Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
UVLS3-AR1335-SL Medium FOV Right

FPDLINK-III PCB Board Camera with onsemi AR1335 13MP Rolling Shutter with Onboard ISP and S-mount Lens

UVLS3-AR1335-SL

  • onsemi AR1335 13MP Rolling Shutter Sensor
  • 4K HDR Imaging for Low-Cost Applications
  • S-Mount for Interchangeable Lenses
  • FAKRA Automotive Connector
  • Plug & Play with Linux OS & Yocto
  • Comes with VizionViewer™ Configuration Utility and VizionSDK
