TEK3-IMX6

  • The TEK3-IMX6 is a scalable system based on an NXP i.MX6 multicore Cortex-A9™ processor for kiosk and self-ordering applications.
  • Edge-computing ready with internal mini-PCIe expansion+ SIM Card slot for LTE/5G cloud connectivity.
  • Ruggedized all-aluminum heat-dissipating fanless box PC with DIN-30 and side rail mounting.
  • Orderable with single voltage 12V DC, wide voltage 9 - 36V DC or 802.3.at PoE (power over ethernet) options and GPIO, UART, CAN interfaces (optional galvanic isolated). HDMI and VGA video support.
  • Linux, Yocto, Ubuntu, Android runtime images and full source code available.

Order this product

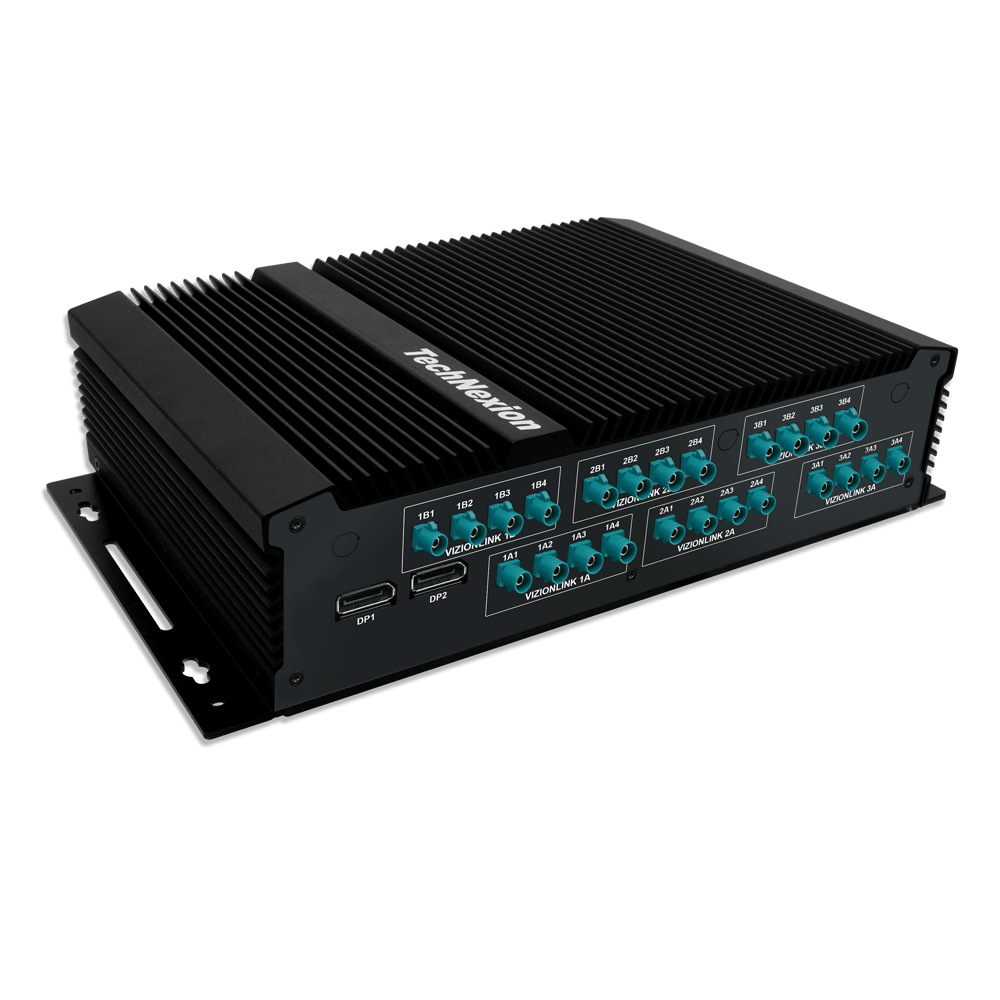

TEK3-IMX6 34RIGHT TOP
TEK3-IMX6 BACK
TEK3-IMX6 FRONT

Highlights

ARM Cortex-A9

Powered by NXP i.MX 6 series processor in multicore ARM Cortex-A9 architecture, cost-effective for a graphical user interface while providing sufficient power for typical industrial and multimedia applications.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX6 Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

Fanless

Reliable thermal solution without moving parts.

I/O

Rich I/O is available for extension and connection.

M.2

Supports an internal M.2 wireless communication module.

PoE

Distributes power over an Ethernet network.

Power Optimized

Various power modules provide a wide power input voltage range.

Software Platform

We advocate Open Source Software and support Linux, Ubuntu, Yocto and Android. Perfect solutions to success can be tailored easily.

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

4GB eMMC

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)

Video
GPU Engine

Vivante GC2000 (Quad)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)

Video decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video encode

1080p30 H.264
BP/Dual 720p

Audio
Audio Codec

NXP SGTL5000

Audio Connectors

1x 3.5mm jack Microphone
1x 3.5mm jack Stereo Audio in
1x 3.5mm jack Stereo Audio out

Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Consumption

Depending on Configuration

Power Connector

2-pin Micro-Fit 3.0

Software Support
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Commercial Linux

Mounting Options
Surface Mounting

4 mounting holes

DIN Mounting

30mm DIN Rail Standard (DIN bracket separate purchase)

Modular Expansion Options
Power Expansion Module

TXB-P1-1030V-LAN1 (8-36V 5A)
TXB-P1-12V-LAN1 (12V 3A)
TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at)

I/O Expansion Module

TXB-I2-GS2-GC2-GG8 (Galvanic Isolated 2x RS-232 + 2x CAN + 8x GPIO)
TXB-I2-S2-C2-G8 (2x RS-232 + 2x CAN + 8x GPIO)

External Connectors
External Display

1x HDMI
1x VGA 15-pin D-SUB

Network

1x RJ45

USB

1x USB 2.0 OTG (Type-C)
2x USB 2.0 Host

Buttons

1x Boot Select
1x Reset

Indicators

4x programmable LEDs

SIM Cardslot

1x Micro-SIM cardslot

SD Cardslot

1x MicroSD Card Slot

Environmental and Mechanical
Enclosure Material

Anodized Aluminium

Dimensions

168 (W) x 109 (H) x 55 (D) mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +50°C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

705 grams

Expansion Interfaces
Expansion Slots

1x M.2 slot
1x mini-PCIe with SIM cardslot

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

TEK3-IMX6 Block Diagram
TEK3-IMX6 Dimensions
